32K607-302L5 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	32K607-302L5
Manufacturer	Rosenberger
Other Part Numbers	1868-1213-ND 104992 1868-1213

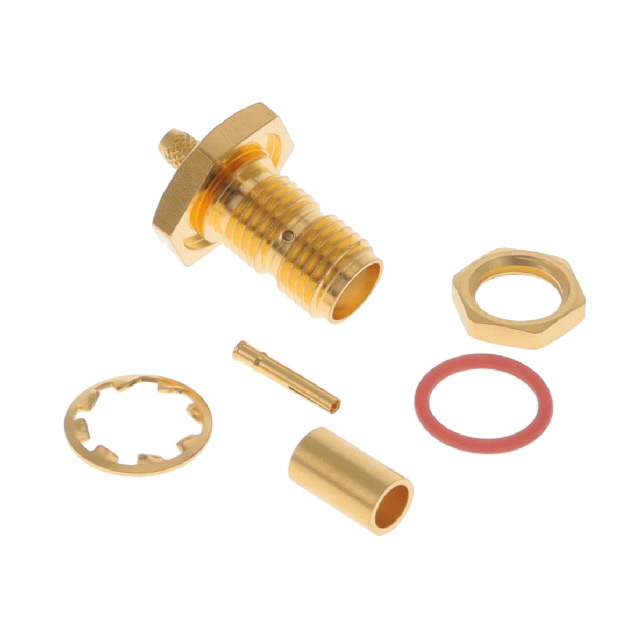

Description	CONN SMA JACK STR 50OHM SOLDER
Detailed Description	SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Rosenberger
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Panel Mount
Cable Group		RG-174A, 188A, 316
Operating Temperature		-65°C ~ 165°C
Fastening Type		Threaded
Includes		5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
Connector Style		SMA
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Beryllium Copper
Housing Color		Gold
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		12.4 GHz
Number of Ports		1
Voltage Rating		480 V

RESOURCE TYPE		LINK
Datasheets		32K607-302L5

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant
