3273694 _ Specialized_Terminal Blocks_Connectors, Interconnects

Part Number	3273694
Manufacturer	Phoenix Contact
Other Part Numbers	277-18323-ND PTFIX 12X4-NS35A BK 277-18323

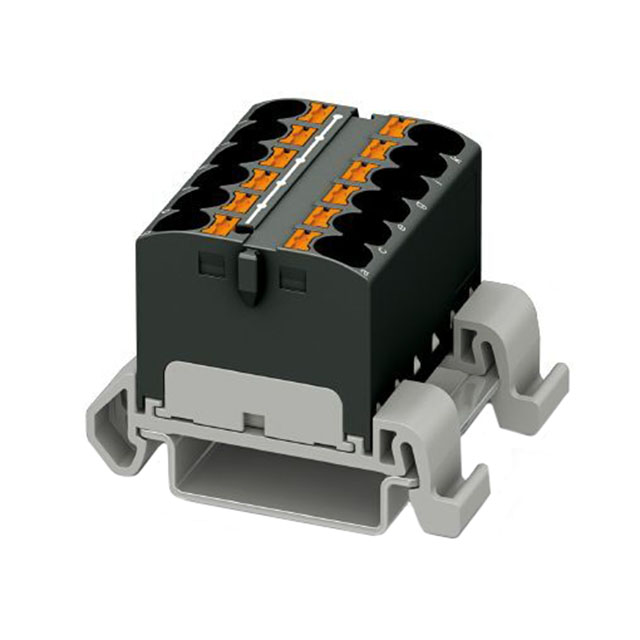

Description	DISTRIBUTION BLOCK BLACK
Detailed Description	12 Position Terminal Block Black Middle 36.9mm
Manufacturer Standard Lead Time	6 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Specialized
Manufacturer		Phoenix Contact
Series		CLIPLINE PTFIX
Packaging		Bulk
Part Status		Active
Features		Block of 6
Mounting Type		DIN Rail
Length		1.799" (45.70mm)
Type		Middle
Operating Temperature		-60°C ~ 130°C
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA), Nylon
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		36.9mm
Wire Gauge or Range - AWG		10-24 AWG
Wire Gauge or Range - mm²		0.2-6mm²
Height (Max)		1.217" (30.90mm)
Housing Color		Black
Stripping Length		10mm ~ 12mm
Current - UL		32 A
Current - IEC		32 A
Voltage - IEC		800 V
Voltage - UL		600 V
Number of Positions		12

RESOURCE TYPE		LINK
Datasheets		3273694

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
