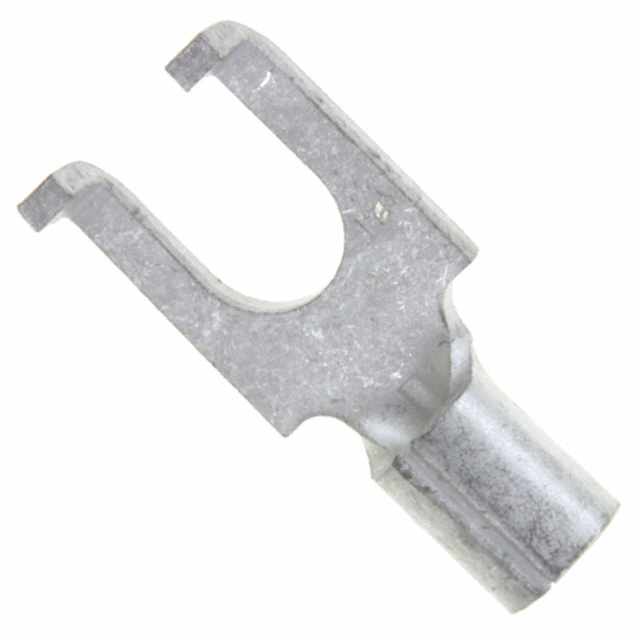

323136

323136

Part Number	323136
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A09006-ND 2266-323136 A09006
Description	CONN SPADE TERM 16-22AWG #6
Detailed Description	6 Stud Spade Terminal Connector Crimp 16-22 AWG
Manufacturer Standard Lead Time	28 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminals Spade Connectors
Manufacturer		TE Connectivity AMP Connectors
Series		Solistrand
Packaging		Bulk
Part Status		Active
Features		Brazed Seam, Serrated Termination
Contact Finish		Tin
Mounting Type		Free Hanging (In-Line)
Wire Gauge		16-22 AWG
Insulation		Non-Insulated
Terminal Type		Flanged
Stud/Tab Size		6 Stud
Length - Overall		0.545" (13.84mm)
Termination		Crimp
Width - Outer Edges		0.250" (6.35mm)
Contact Material		Copper
Length - Ring Center to Termination		0.203" (5.16mm)
Length - Termination		0.181" (4.60mm)
Tongue Inside Opening		0.145" (3.68mm)

Documents & Media

RESOURCE TYPE		LINK
Datasheets		323136
Datasheets		323136 Statement of Compliance
Datasheets		323136.pdf

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		RoHS Compliant

In Stock: 1411

Can ship immediately.
