3211-20027

Part Number
3211-20027
Manufacturer SV Microwave (Amphenol SV Microwave)
Other Part Numbers
1678-3211-20027-ND
1678-3211-20027

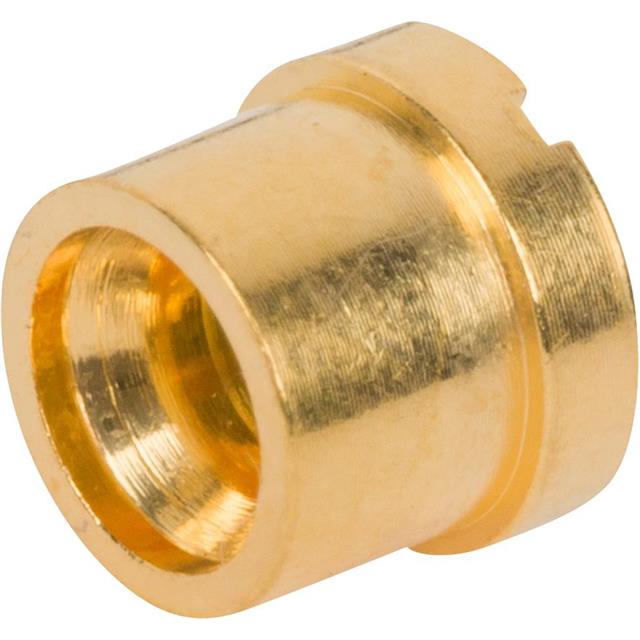

Description SMPM MALE PCB SURFACE MOUNT CONN
Detailed Description SMPM Connector Plug, Male Pin 50 Ohms Surface Mount Solder
Manufacturer Standard Lead Time 15 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer SV Microwave (Amphenol SV Microwave)
Series
Packaging
Tray
Part Status Active
Features Smooth Bore
Connector Type Plug, Male Pin
Contact Termination Solder
Impedance 50 Ohms
Mounting Type Surface Mount
Operating Temperature -65°C ~ 165°C
Fastening Type Snap-On
Connector Style SMPM
Dielectric Material Glass
Body Material Steel
Housing Color Gold
Mating Cycles 1000
Shield Termination Solder
Body Finish Gold
Center Contact Plating Gold
Frequency - Max 40 GHz
Number of Ports 1

Documents & Media

RESOURCE TYPE LINK
Datasheets 3211-20027
Datasheets Board to Board Brochure

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4010
Moisture Sensitivity Level (MSL) Not Applicable
RoHS Status ROHS3 Compliant
