3210509 _ Din Rail, Channel_Terminal Blocks_Connectors, Interconnects

Part Number	3210509
Manufacturer	Phoenix Contact
Other Part Numbers	277-3854-ND 3210509-ND 277-3854 PIT2,5-3LBU PT2,5-3LBU PT 2,5-3L BU
Description	CONN TERM BLK FEED THRU 12-26AWG

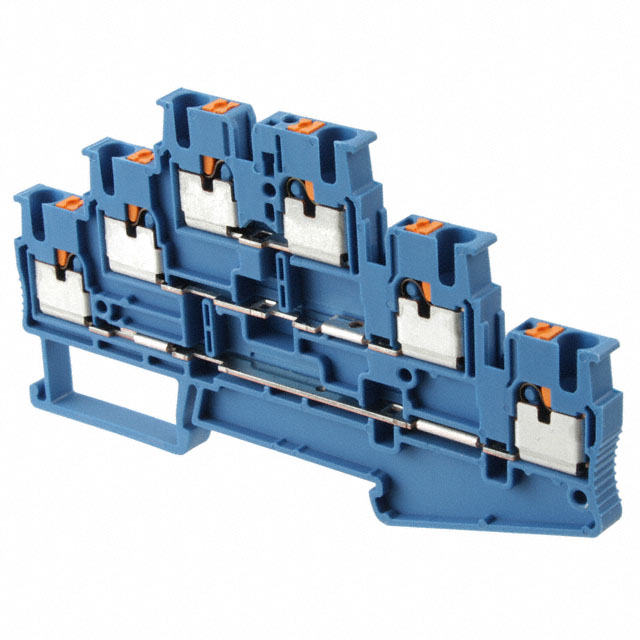

Detailed Description	Terminal Block Connector 6 Position Feed Through Blue 12-26 AWG
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		Phoenix Contact
Series		CLIPLINE PT
Packaging		Box
Part Status		Active
Color		Blue
Type		Feed Through
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA), Nylon
Material Flammability Rating		UL94 V-0
Number of Levels		3
Terminal - Width		5.2mm
Voltage - IEC		500V
Voltage - UL		300V
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.14-4mm²
Stripping Length		10mm
Current - UL		20 A
Current - IEC		20 A
Number of Positions		6

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.8000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
