320627 _ Ring Connectors_Terminals_Connectors, Interconnects

Part Number	320627
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A09035-ND A09035 -320627-SI 2266-320627

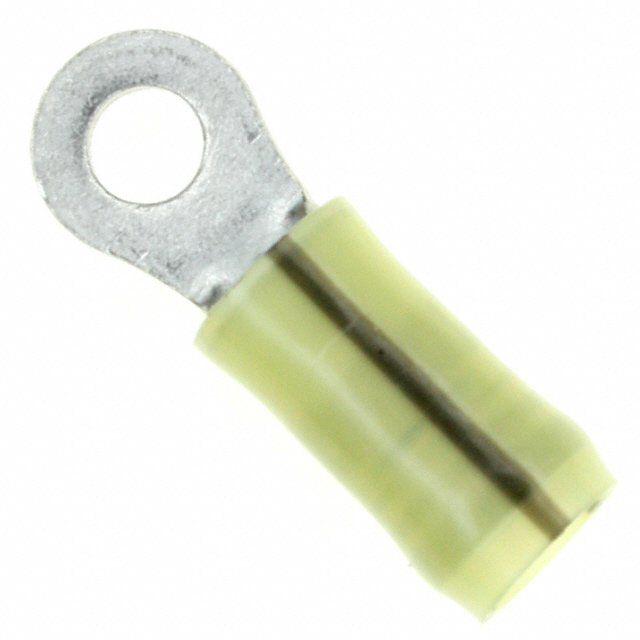

Description	CONN RING CIRC 14-16AWG #8 CRIMP
Detailed Description	Ring Terminal Connector 8 Stud Circular 14-16 AWG Crimp
Manufacturer Standard Lead Time	34 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminals Ring Connectors
Manufacturer		TE Connectivity AMP Connectors
Series		PIDG
Packaging		Bulk
Part Status		Active
Features		Heavy Duty, Serrated Termination
Contact Finish		Tin
Color		Yellow, Black Stripe
Mounting Type		Free Hanging (In-Line)
Wire Gauge		14-16 AWG
Insulation		Insulated
Thickness		0.048" (1.22mm)
Terminal Type		Circular
Stud/Tab Size		8 Stud
Length - Overall		1.046" (26.57mm)
Termination		Crimp
Material - Insulation		Polyamide (PA), Nylon
Width - Outer Edges		0.343" (8.71mm)
Contact Material		Copper
Insulation Diameter		0.150" ~ 0.230" (3.81mm ~ 5.84mm)

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

Can ship immediately.
