31157104 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	31157104
Manufacturer	RIA Connect / METZ CONNECT
Other Part Numbers	1849-1077-ND 1849-1077

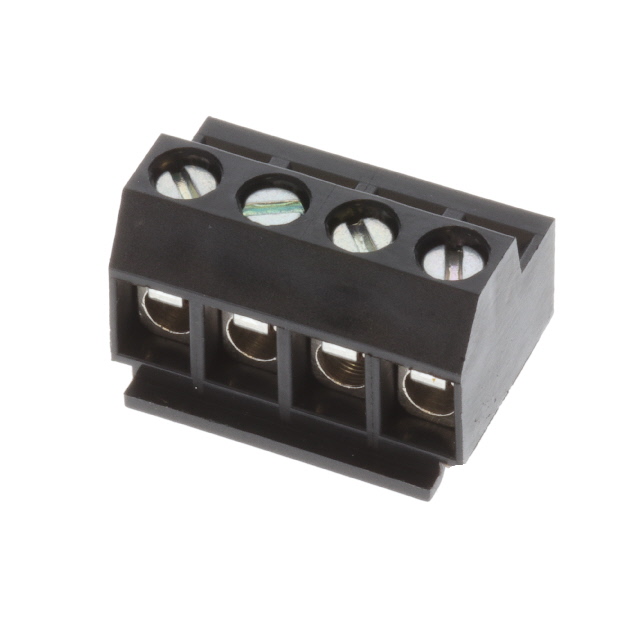

Description	SCREW TYPE TERMINAL BLOCK, PLUG,
Detailed Description	4 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Panel Mount, Snap-In
Manufacturer Standard Lead Time	18 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		RIA Connect / METZ CONNECT
Series
Packaging		Bulk
Part Status		Active
Color		Black
Mounting Type		Panel Mount, Snap-In
Number of Positions		4
Pitch		0.197" (5.00mm)
Screw Size		M3
Type		Plug for Unshrouded Header
Operating Temperature		-40°C ~ 105°C
Termination Style		Screw - Leaf Spring, Wire Guard
Ingress Protection		IP20
Material Flammability Rating		UL94 V-0
Number of Levels		1
Wire Gauge or Range - AWG		14-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Positions Per Level		4
Contact Material		Copper Alloy
Plug Wire Entry		90°
Housing Material		Polyamide (PA66), Nylon 6/6
Torque - Screw		0.5 Nm (4.4 Lb-In)
Contact Mating Finish		Tin
Current - UL		5 A
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		31157104

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
