31-5556-RFX _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	31-5556-RFX
Manufacturer	Connex (Amphenol RF)
Other Part Numbers	ARFX1124-ND ARFX1124 031-5556-RFX 315556RFX

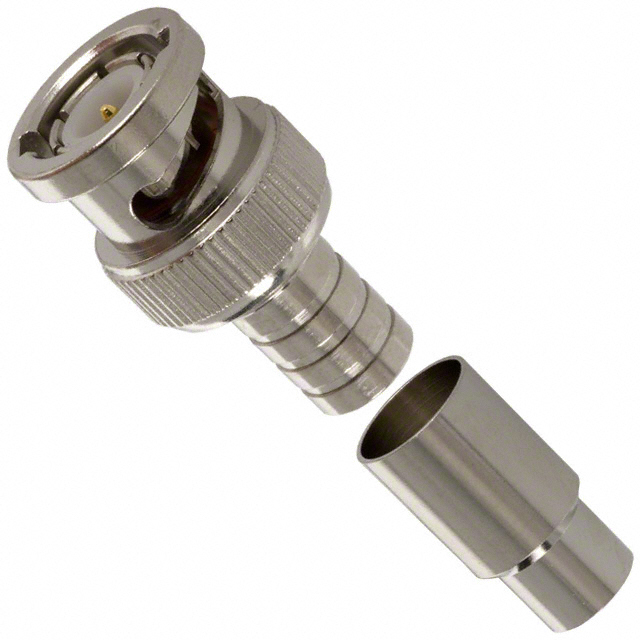

Description	CONN BNC PLUG STR 50 OHM PUSH
Detailed Description	BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Push On
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Connex (Amphenol RF)
Series
Packaging		Bulk
Part Status		Active
Connector Type		Plug, Male Pin
Contact Termination		Push On
Impedance		50 Ohms
Mounting Type		Free Hanging (In-Line)
Cable Group		RG-59, 59B, 62, 140, 210, Belden 8241, 8263, 8279, 9209
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.2dB
Fastening Type		Bayonet Lock
Includes		3 pcs - 1 Connector, 1 Bushing, 1 Ferrule
Connector Style		BNC
Dielectric Material		Polyoxymethylene (POM) Acetal
Body Material		Brass
Housing Color		Silver
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Nickel
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		500 V

RESOURCE TYPE		LINK
Datasheets		31-5556-RFX

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
