3000653 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	3000653
Manufacturer	Phoenix Contact
Other Part Numbers	3000653-ND PPC 2 5/1-L
Description	COMBI RECEPTACLE CONNECTION METH

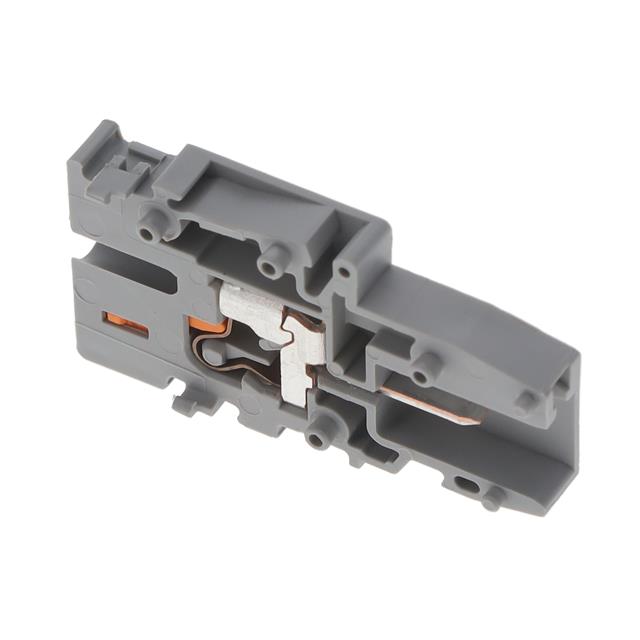

Detailed Description	1 Position Terminal Block Plug, Blade Pins 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	4 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		Phoenix Contact
Series		CLIPLINE COMBI PT
Packaging		Bulk
Part Status		Active
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		1
Type		Plug, Blade Pins
Operating Temperature		-60°C ~ 100°C
Termination Style		Screwless - Leg Spring, Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		24A
Number of Levels		1
Wire Gauge or Range - AWG		12-26 AWG
Wire Gauge or Range - mm²		0.14-4mm²
Positions Per Level		1
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Wire Strip Length		8-10mm
Insulation Height		1.614" (41.00mm)
Current - UL		20 A
Voltage - IEC		500 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		3000653

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
