30-01585 _ Multiple Conductor Cables_Cables, Wires

Part Number	30-01585
Manufacturer	Tensility International Corporation
Other Part Numbers	839-30-01585-ND 839-30-01585
Description	CABLE 5COND 20AWG BLACK SHLD

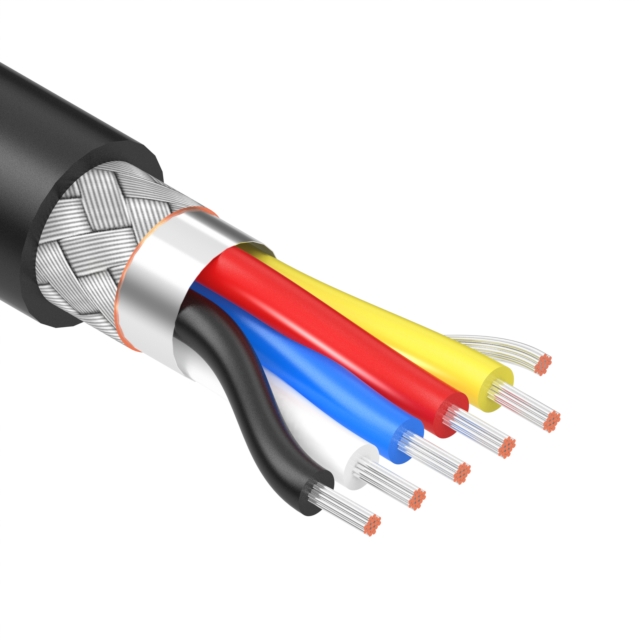

Detailed Description	5 Conductor Multi-Conductor Cable Black 20 AWG Foil, Braid 502.0' (153.0m)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Cables, Wires Multiple Conductor Cables
Manufacturer		Tensility International Corporation
Series
Packaging		Spool
Part Status		Active
Features		Drain Wire, Oil Resistant, UV Resistant
Length		502.0' (153.0m)
Wire Gauge		20 AWG
Jacket (Insulation) Material		Poly-Vinyl Chloride (PVC)
Conductor Strand		26/0.0063"
Operating Temperature		-40°C ~ 105°C
Number of Conductors		5
Cable Type		Multi-Conductor
Jacket (Insulation) Diameter		0.275" (6.99mm)
Conductor Insulation		Poly-Vinyl Chloride (PVC)
Ratings		UL Style 20387
Jacket (Insulation) Thickness		0.0315" (0.800mm)
Shield Coverage		100%, 65%
Shield Material		Aluminum; Copper, Tinned
Shield Type		Foil, Braid
Conductor Material		Copper, Tinned
Jacket Color		Black
Voltage		300 V

RESOURCE TYPE		LINK
Datasheets		30-01585

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8544.49.3080
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
