Part Number |
30-01067
|
---|---|
Manufacturer | Tensility International Corporation |
Other Part Numbers |
T1396-1-ND
T1396-1
|

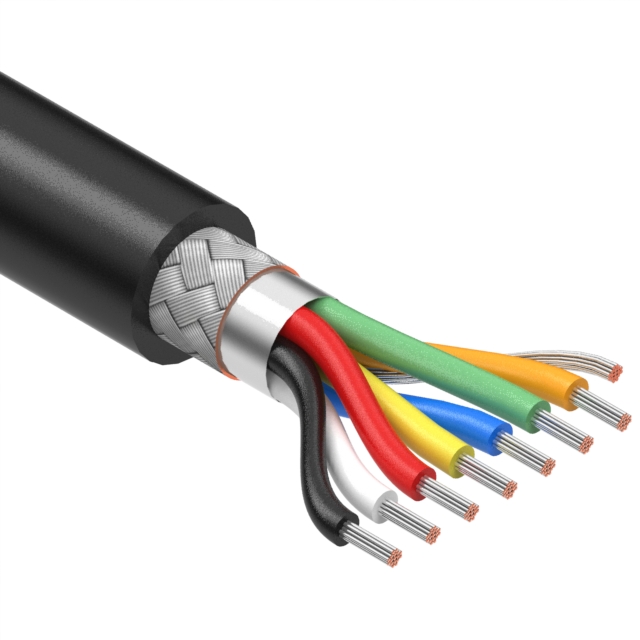

Description | CABLE 7COND 24AWG BLACK SHLD 1M |
Detailed Description | 7 Conductor Multi-Conductor Cable Black 24 AWG Foil, Braid 3.28' (1.00m) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Tensility International Corporation | |
Series | ||
Packaging |
Spool
|
|
Part Status | Discontinued | |
Features | Drain Wire | |
Length | 3.28' (1.00m) | |
Wire Gauge | 24 AWG | |
Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | |
Conductor Strand | 11/0.0063" | |
Operating Temperature | -25°C ~ 80°C | |
Number of Conductors | 7 | |
Cable Type | Multi-Conductor | |
Jacket (Insulation) Diameter | 0.240" (6.10mm) | |
Conductor Insulation | Poly-Vinyl Chloride (PVC) | |
Ratings | UL Style 2464 | |
Jacket (Insulation) Thickness | 0.0315" (0.800mm) | |
Shield Coverage | 80% | |
Shield Material | Aluminum; Copper, Tinned | |
Shield Type | Foil, Braid | |
Conductor Material | Copper, Tinned | |
Jacket Color | Black | |
Voltage | 300 V |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 30-01067 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
