3-1825139-4

3-1825139-4

Part Number	3-1825139-4
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	3-1825139-4-ND A211SDZQ04 3937-3-1825139-4

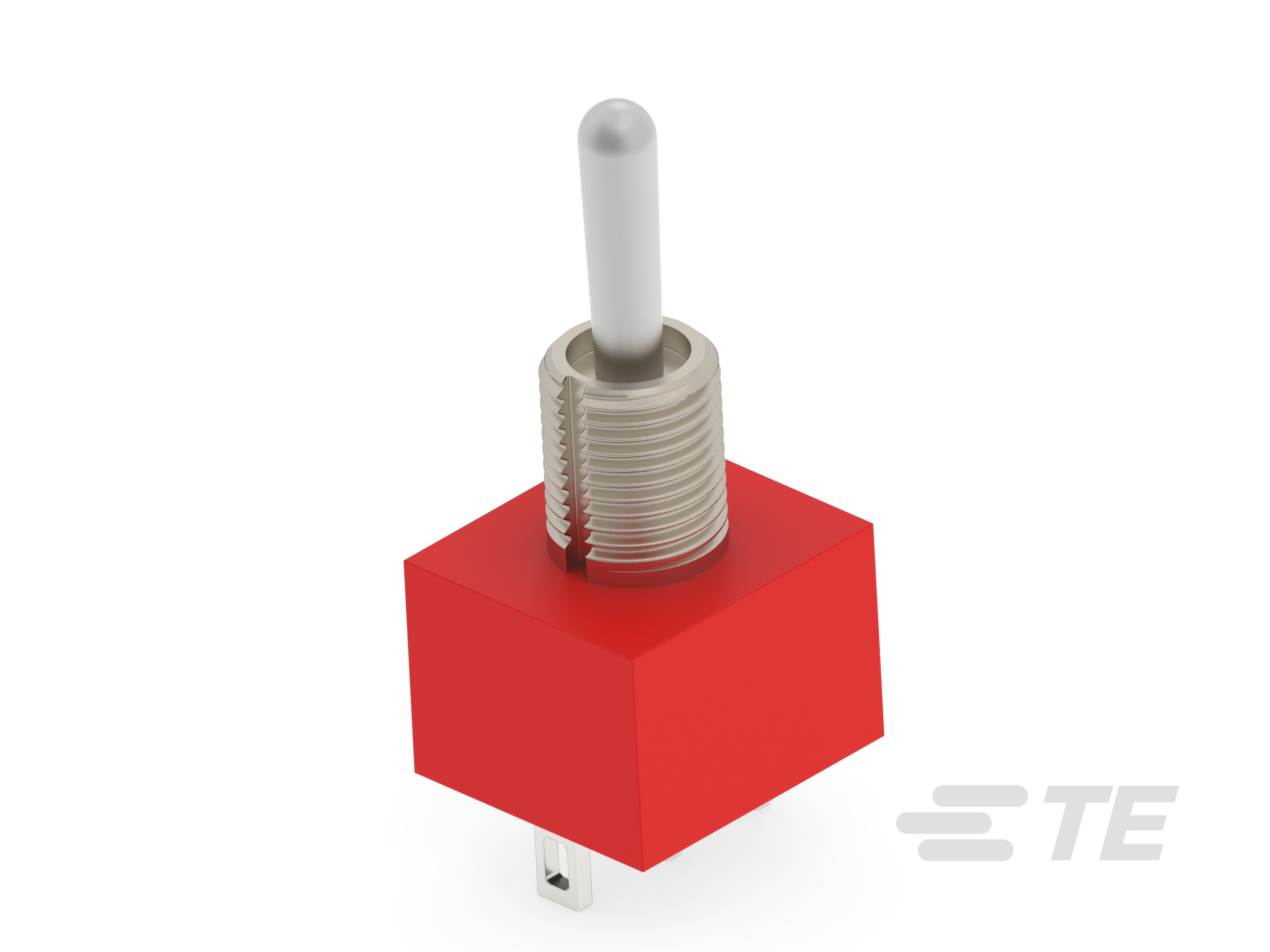

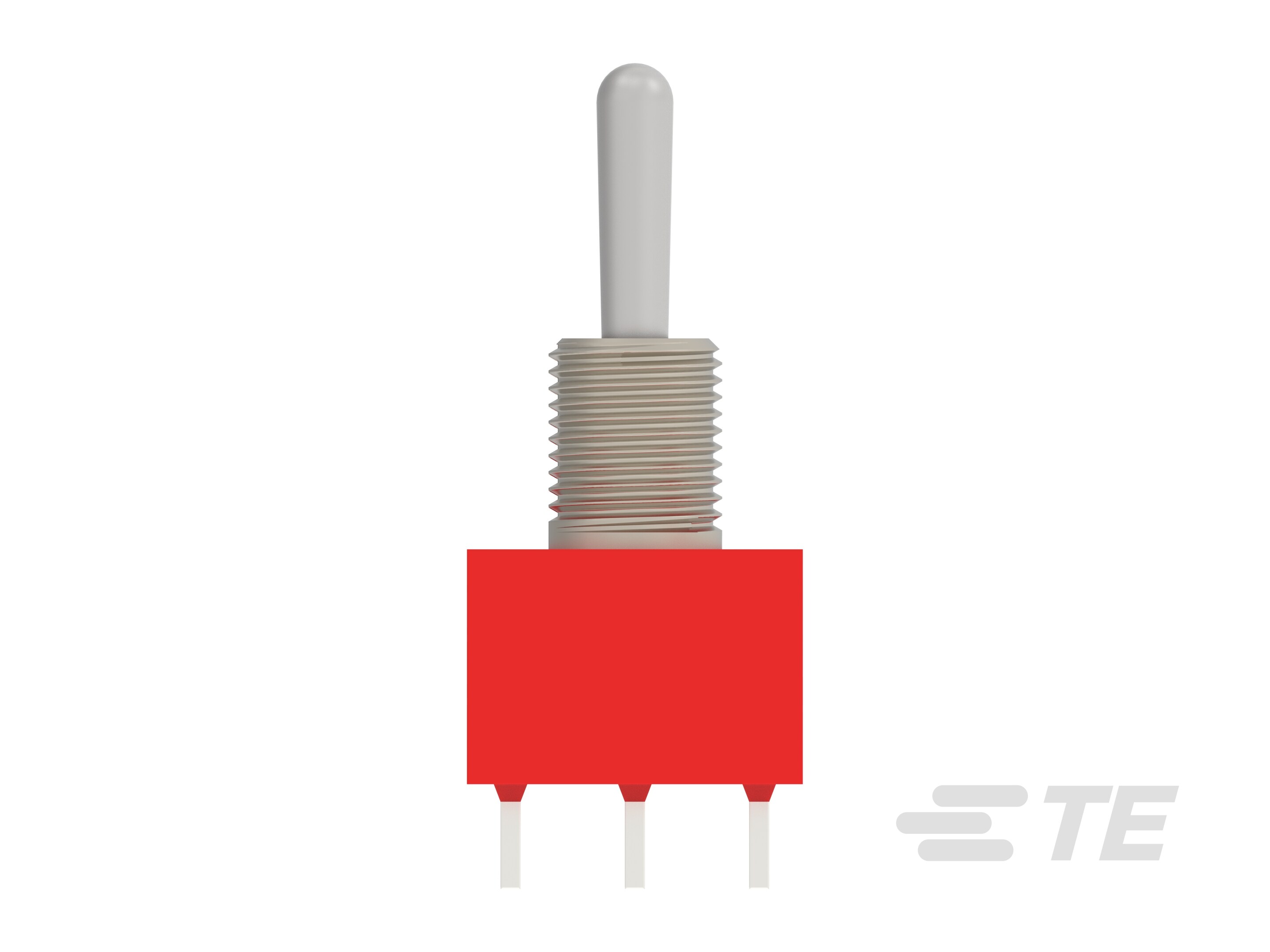

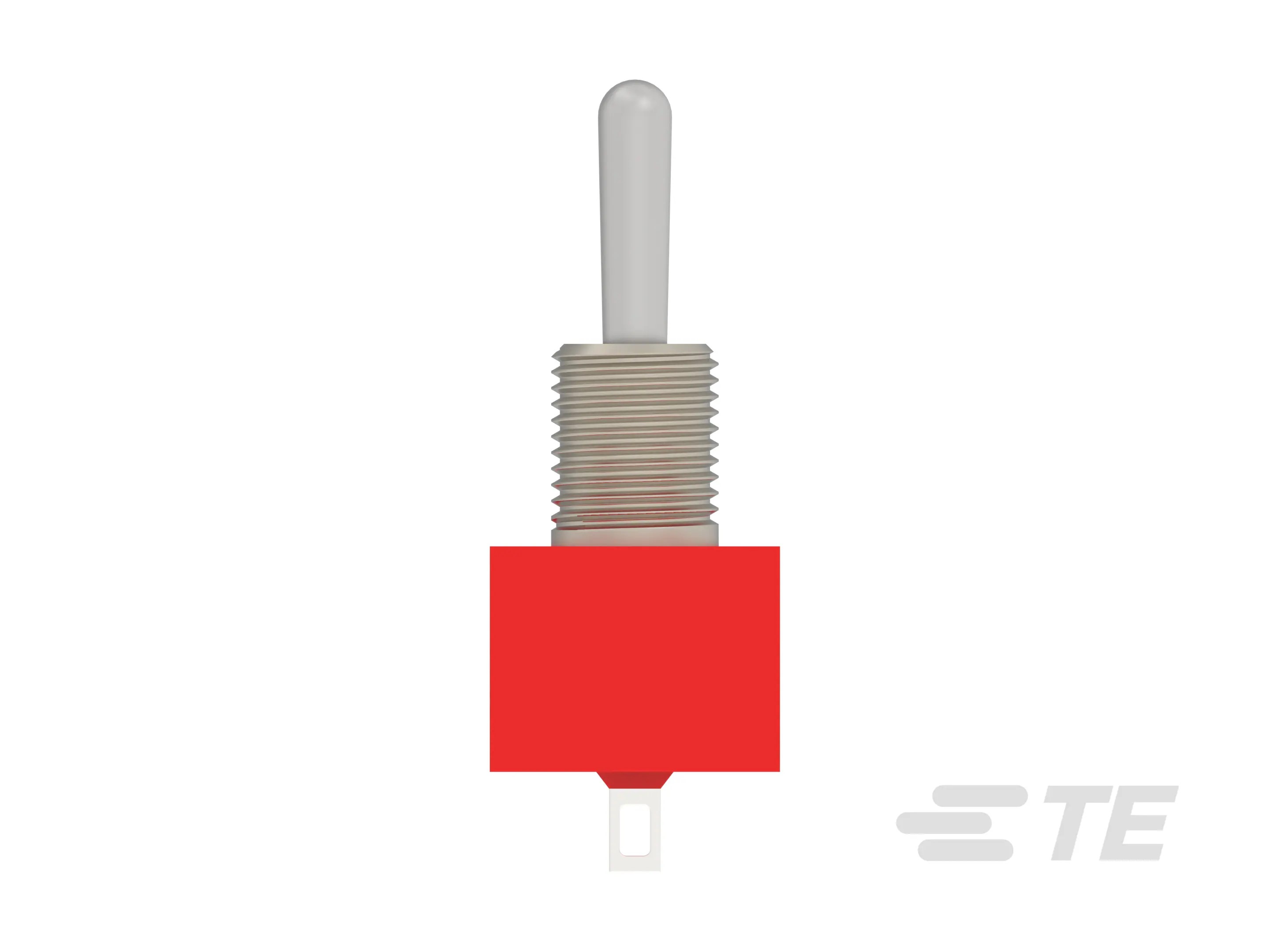

Description	SWITCH TOGGLE SP3T 5A 120V
Detailed Description	Toggle Switch SP3T Panel Mount
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Toggle Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		Gemini A
Packaging		Bulk
Part Status		Active
Features		Jumper needed to achieve triple throw
Current Rating (Amps)		5A (AC/DC)
Mounting Type		Panel Mount
Circuit		SP3T
Switch Function		On-On-On
Operating Temperature		-30°C ~ 85°C
Termination Style		Solder Lug
Illumination		Non-Illuminated
Bushing Thread		1/4-40
Actuator Length		12.19mm
Actuator Type		Standard Round
Panel Cutout Dimensions		Circular - 6.35mm Dia
Voltage Rating - AC		120 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3-1825139-4
Datasheets		1825139 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant

In Stock: 413

Can ship immediately.
