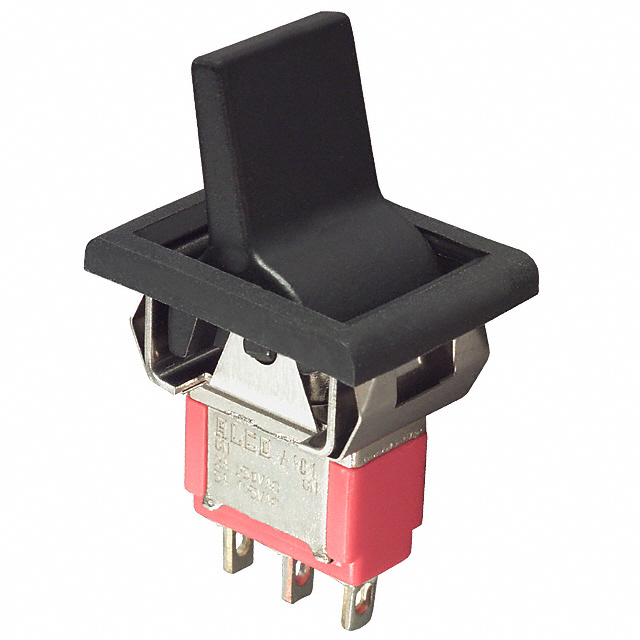

3-1571986-6

3-1571986-6

Part Number	3-1571986-6
Manufacturer	TE Connectivity ALCOSWITCH Switches
Other Part Numbers	450-1501-ND 3-1571986-6-ND A101J61ZQ0004 450-1501 2266-3-1571986-6 3937-3-1571986-6
Description	SWITCH ROCKER SPDT 5A 120V
Detailed Description	Rocker Switch SPDT 5A (AC/DC) 120 V Panel Mount, Snap-In
Manufacturer Standard Lead Time	25 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Rocker Switches
Manufacturer		TE Connectivity ALCOSWITCH Switches
Series		A
Packaging		Bulk
Part Status		Active
Features		Epoxy Sealed Terminals
Current Rating (Amps)		5A (AC/DC)
Mounting Type		Panel Mount, Snap-In
Circuit		SPDT
Switch Function		On-On
Operating Temperature		-30°C ~ 85°C
Termination Style		Solder Lug
Actuator Type		Paddle
Panel Cutout Dimensions		Rectangular - 15.24mm x 12.70mm
Color - Actuator/Cap		Black
Actuator Marking		No Marking
Voltage Rating - AC		120 V
Voltage Rating - DC		28 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3-1571986-6
Datasheets		1571986 Drawing

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9065
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		ROHS3 Compliant

In Stock: 19

Can ship immediately.
