3.14.200.022/0000

3.14.200.022/0000

Part Number	3.14.200.022/0000
Manufacturer	RAFI
Other Part Numbers	1715-3.14.200.022/0000-ND 1715-1425-2 1715-1425-1INACTIVE 1715-1425-ND 1715-1425-1 1715-1425 1715-1425-6INACTIVE 1715-1425-2-ND 1715-1425-1-ND 1715-3.14.200.022/0000 3142000220000 1715-1425-6 3.14200.0220000 1715-1425-6-ND

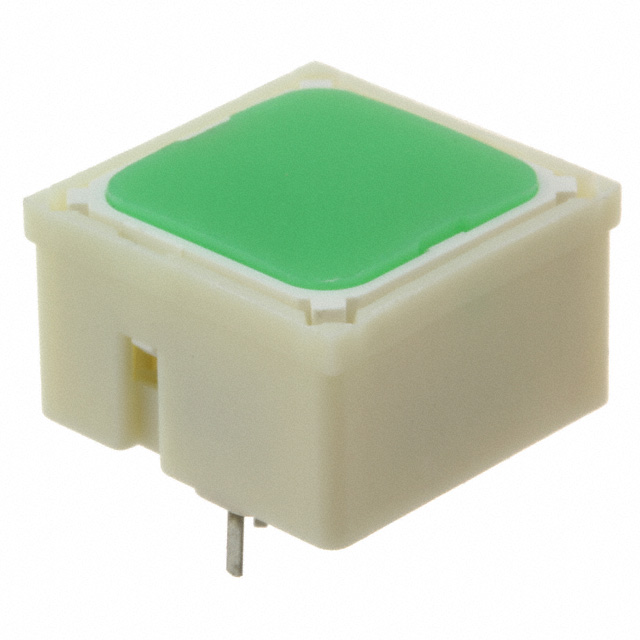

Description	SWITCH TACTILE SPST-NO 0.25A 35V
Detailed Description	Tactile Switch SPST-NO Top Actuated Through Hole
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Switches Tactile Switches
Manufacturer		RAFI
Series		RF15
Packaging		Tube
Part Status		Active
Mounting Type		Through Hole
Circuit		SPST-NO
Switch Function		Off-Mom
Operating Temperature		-25°C ~ 70°C
Termination Style		PC Pin
Illumination Type, Color		LED, Green
Illumination		Illuminated
Contact Rating @ Voltage		0.25A @ 35VAC/DC
Actuator Type		Square Button
Operating Force		296gf
Outline		15.00mm x 15.00mm
Actuator Height off PCB, Vertical		9.70mm
Actuator Orientation		Top Actuated

Documents & Media

RESOURCE TYPE		LINK
Datasheets		3.14.200.022/0000

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.50.9031
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 13

Can ship immediately.
