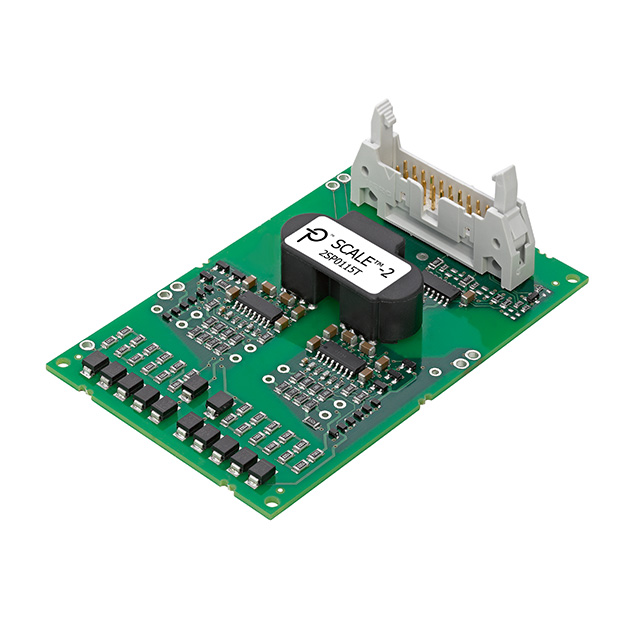

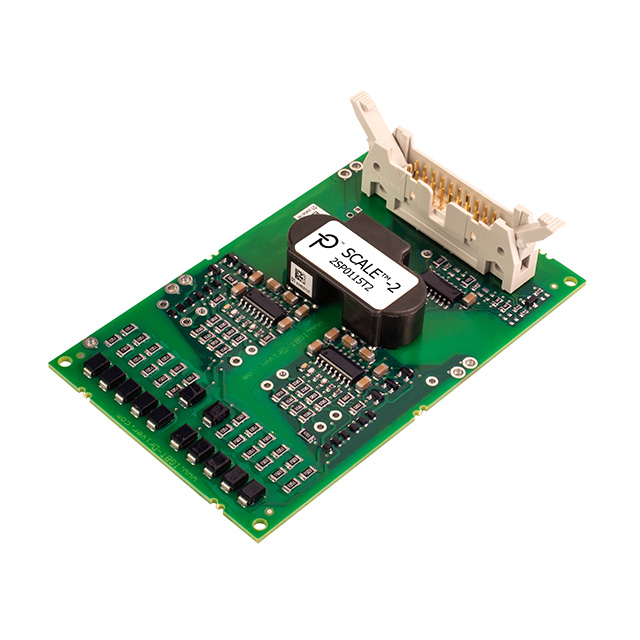

2SP0115T2A0-17

Part Number
2SP0115T2A0-17
Manufacturer Power Integrations
Other Part Numbers
1810-1039-ND
1810-1039
Description IC GATE DRVR HALF-BRIDGE MODULE
Detailed Description Half-Bridge Gate Driver IC Module
Manufacturer Standard Lead Time 12 weeks

Product Attributes

Category
Manufacturer Power Integrations
Series
SCALE™-2
Packaging
Tray
Part Status Active
Package / Case Module
Mounting Type Surface Mount
Operating Temperature -20°C ~ 85°C (TA)
Voltage - Supply 14.5V ~ 15.5V
High Side Voltage - Max (Bootstrap) 1700 V
Supplier Device Package Module
Rise / Fall Time (Typ) 5ns, 10ns
Channel Type Independent
Driven Configuration Half-Bridge
Number of Drivers 2
Gate Type IGBT
Current - Peak Output (Source, Sink) 8A, 15A
DigiKey Programmable Not Verified

Documents & Media

RESOURCE TYPE LINK

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8504.40.9580
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status ROHS3 Compliant

In Stock: 89

Can ship immediately.
