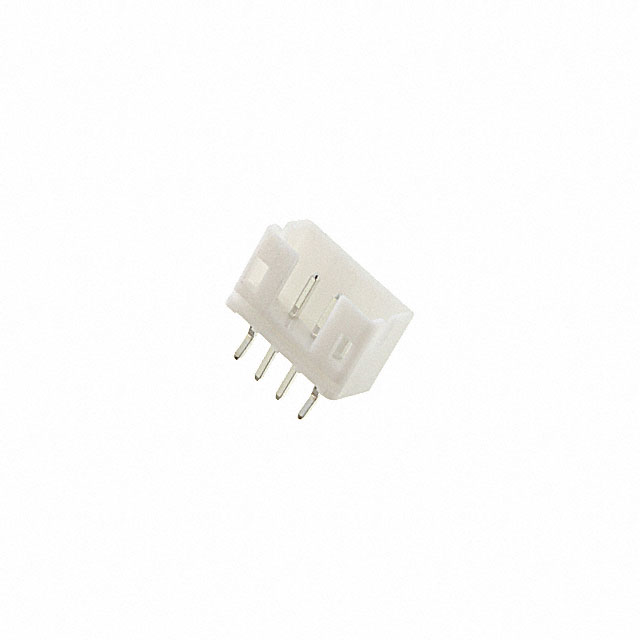

2SH-C-04-TS _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2SH-C-04-TS
Manufacturer	Adam Tech
Other Part Numbers	2057-2SH-C-04-TS-ND 2057-2SH-C-04-TS
Description	CONN HEADER VERT 4POS 2MM
Detailed Description	Connector Header Through Hole 4 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Adam Tech
Series		2SH
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		100VAC
Current Rating (Amps)		2A
Mounting Type		Through Hole
Number of Positions		4
Number of Rows		1
Style		Board to Cable/Wire
Operating Temperature		-25°C ~ 85°C
Contact Type		Male Pin
Number of Positions Loaded		All
Termination		Kinked Pin, Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		White
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Square
Contact Length - Post		0.134" (3.40mm)
Insulation Height		0.240" (6.10mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA66), Nylon 6/6

RESOURCE TYPE		LINK
Datasheets		2SH-C-04-TS
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
