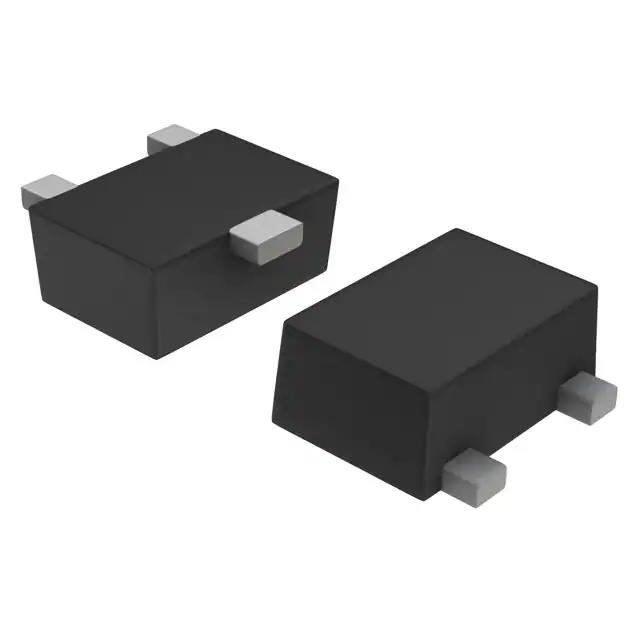

2SC4919-S-TL-E

2SC4919-S-TL-E

Part Number	2SC4919-S-TL-E
Manufacturer	Sanyo Semiconductor/onsemi
Other Part Numbers	2156-2SC4919-S-TL-E-488-ND 2156-2SC4919-S-TL-E-488
Description	2SC4919-S - 2SC4919 - NPN EPITAX
Detailed Description	Bipolar (BJT) Transistor NPN 15 V 100 mA 240MHz 150 mW Surface Mount 3-SSFP
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		Sanyo Semiconductor/onsemi
Series
Packaging		Bulk
Part Status		Active
Package / Case		SOT-623F
Mounting Type		Surface Mount
Transistor Type		NPN
Operating Temperature		150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		30mV @ 1mA, 10mA
Current - Collector Cutoff (Max)		100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		800 @ 5mA, 2V
Frequency - Transition		240MHz
Supplier Device Package		3-SSFP
Current - Collector (Ic) (Max)		100 mA
Voltage - Collector Emitter Breakdown (Max)		15 V
Power - Max		150 mW

Documents & Media

RESOURCE TYPE		LINK
Datasheets		2SC4919-S-TL-E

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
Moisture Sensitivity Level (MSL)		Vendor Undefined
REACH Status		REACH Unaffected
