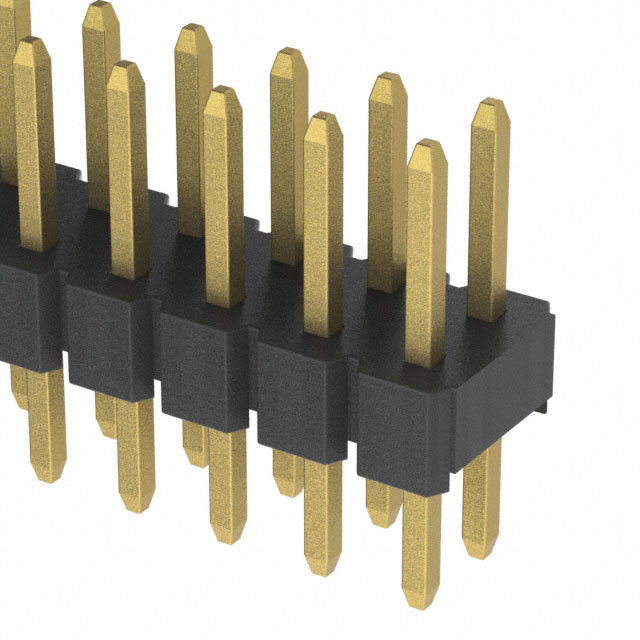

2PH2-20-UA _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2PH2-20-UA
Manufacturer	Adam Tech
Other Part Numbers	2057-2PH2-20-UA-ND 2057-2PH2-20-UA
Description	CONN HEADER VERT 20POS 2MM
Detailed Description	Connector Header Through Hole 20 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Adam Tech
Series		2PH2
Packaging		Bulk
Part Status		Active
Connector Type		Header
Voltage Rating		250VAC
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		20
Number of Rows		2
Style		Board to Board
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.110" (2.79mm)
Insulation Height		0.079" (2.00mm)
Shrouding		Unshrouded
Overall Contact Length		0.343" (8.70mm)
Insulation Material		Polybutylene Terephthalate (PBT)
Row Spacing - Mating		0.079" (2.00mm)
Contact Length - Mating		0.154" (3.91mm)

RESOURCE TYPE		LINK
Datasheets		2PH2-20-UA
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
