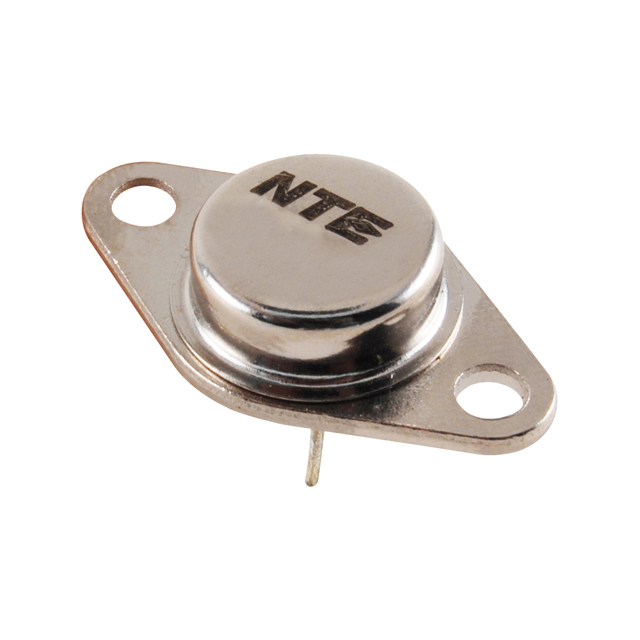

2N5430

Part Number
2N5430
Manufacturer NTE Electronics, Inc
Other Part Numbers
2368-2N5430-ND
2368-2N5430
Description TRANS NPN 100V 7A TO66
Detailed Description Bipolar (BJT) Transistor NPN 100 V 7 A 30MHz 40 W Through Hole TO-66
Datasheet Datasheet

Product Attributes

Category
Manufacturer NTE Electronics, Inc
Series
Packaging
Bag
Part Status Active
Package / Case TO-213AA, TO-66-2
Mounting Type Through Hole
Transistor Type NPN
Frequency - Transition 30MHz
Supplier Device Package TO-66
Current - Collector (Ic) (Max) 7 A
Voltage - Collector Emitter Breakdown (Max) 100 V
Power - Max 40 W

Documents & Media

RESOURCE TYPE LINK
Datasheets 2N5430
Datasheets RoHS Statement
Datasheets REACH Statement

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8541.29.0095
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant
