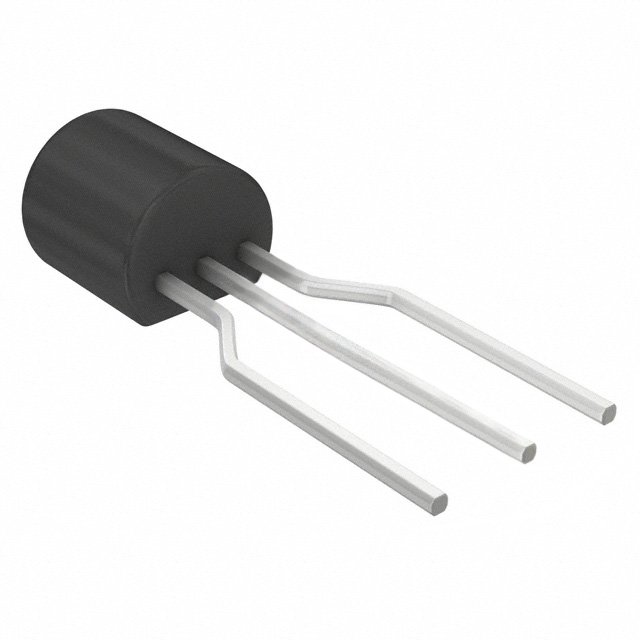

2N4123 PBFREE

2N4123 PBFREE

Part Number	2N4123 PBFREE
Manufacturer	Central Semiconductor
Other Part Numbers	1514-2N4123PBFREE-ND 1514-2N4123PBFREE 2N4123CS-ND 2N4123CS
Description	TRANS NPN 30V 0.2A TO92
Detailed Description	Bipolar (BJT) Transistor NPN 30 V 200 mA 250MHz 1.5 W Through Hole TO-92
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Product Attributes

Category		Discrete Semiconductor Products Transistors Bipolar (BJT) Single Bipolar Transistors
Manufacturer		Central Semiconductor
Series
Packaging		Bulk
Part Status		Active
Package / Case		TO-226-3, TO-92-3 (TO-226AA)
Mounting Type		Through Hole
Transistor Type		NPN
Operating Temperature		-65°C ~ 150°C (TJ)
Vce Saturation (Max) @ Ib, Ic		300mV @ 5mA, 50mA
Current - Collector Cutoff (Max)		50nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce		50 @ 2mA, 10V
Frequency - Transition		250MHz
Supplier Device Package		TO-92
Current - Collector (Ic) (Max)		200 mA
Voltage - Collector Emitter Breakdown (Max)		30 V
Power - Max		1.5 W

Documents & Media

RESOURCE TYPE		LINK
Datasheets		2N4123 PBFREE
Datasheets		RoHS Cert

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.29.0075
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
