Part Number |
2N3807
|
---|---|
Manufacturer | Central Semiconductor |
Other Part Numbers |
2N3807-ND
|
Description | TRANS 2PNP 50MA 60V TO78-6 |
Detailed Description | Bipolar (BJT) Transistor Array 2 PNP (Dual) 60V 50mA 100MHz 600mW Through Hole TO-78-6 |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Central Semiconductor | |
Series | ||
Packaging |
Bulk
|
|
Part Status | Obsolete | |

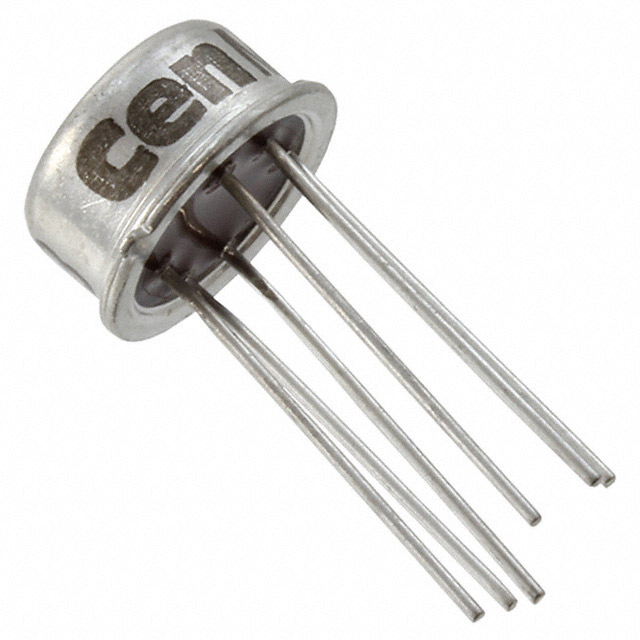

Package / Case | TO-78-6 Metal Can | |
Mounting Type | Through Hole | |
Transistor Type | 2 PNP (Dual) | |
Power - Max | 600mW | |
Current - Collector (Ic) (Max) | 50mA | |
Voltage - Collector Emitter Breakdown (Max) | 60V | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 300 @ 1mA, 5V | |
Frequency - Transition | 100MHz | |
Supplier Device Package | TO-78-6 |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | 2N3807 | |
Datasheets | RoHS Cert | |
Datasheets | EOL 17/Jan/2017 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8541.21.0075 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | RoHS non-compliant |
