2EZ7.5D5E3/TR8

2EZ7.5D5E3/TR8

Part Number	2EZ7.5D5E3/TR8
Manufacturer	Microsemi Corporation
Other Part Numbers	150-2EZ7.5D5E3/TR8TR-ND 150-2EZ7.5D5E3/TR8TR 2EZ7.5D5E3/TR8-ND
Description	DIODE ZENER 7.5V 2W DO204AL

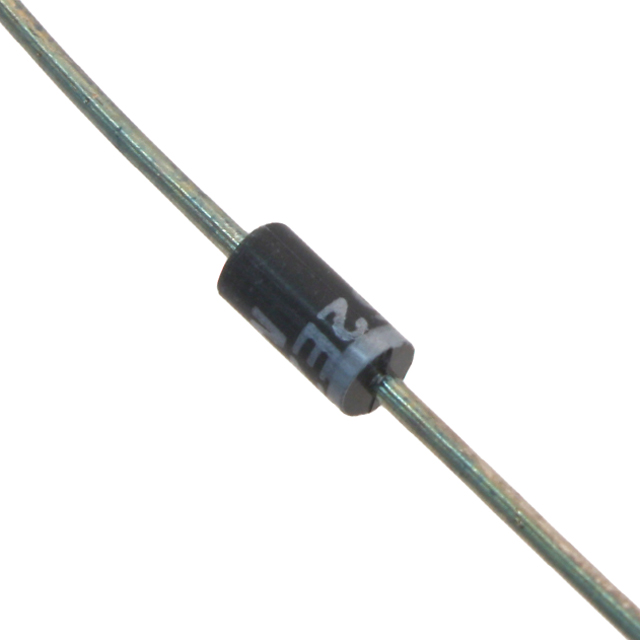

Detailed Description	Zener Diode 7.5 V 2 W ±5% Through Hole DO-204AL (DO-41)

Product Attributes

Category		Discrete Semiconductor Products Diodes Zener Single Zener Diodes
Manufacturer		Microsemi Corporation
Series
Packaging		Tape & Reel (TR)
Part Status		Active
Tolerance		±5%
Package / Case		DO-204AL, DO-41, Axial
Mounting Type		Through Hole
Operating Temperature		-65°C ~ 150°C
Voltage - Zener (Nom) (Vz)		7.5 V
Impedance (Max) (Zzt)		2 Ohms
Supplier Device Package		DO-204AL (DO-41)
Power - Max		2 W
Voltage - Forward (Vf) (Max) @ If		1.2 V @ 200 mA
Current - Reverse Leakage @ Vr		5 µA @ 5 V

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8541.10.0050
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Available To Order
