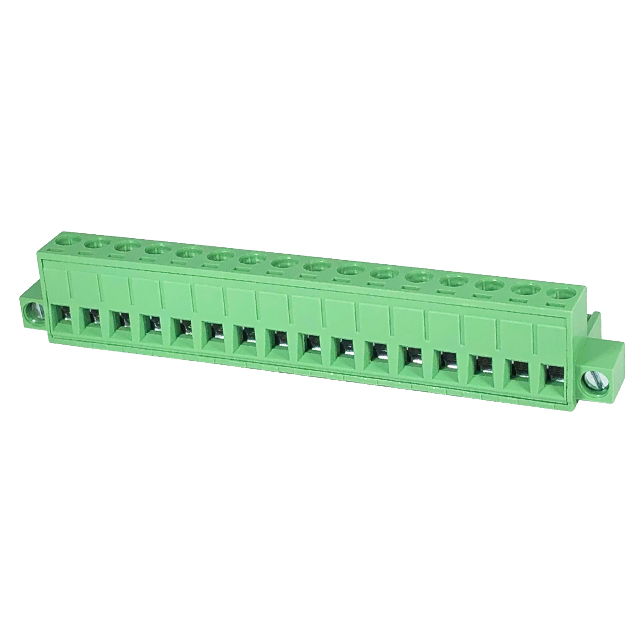

2ESDVM-16P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2ESDVM-16P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-2ESDVM-16P-ND 2861-2ESDVM-16P
Description	TERM BLK 16POS 5.08MM SCRW PLG
Detailed Description	16 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		2ESDVM
Packaging		Bulk
Part Status		Active
Features		Mating Flange
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		16
Pitch		0.200" (5.08mm)
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw
Current - IEC		18A
Number of Levels		1
Wire Gauge or Range - AWG		12-30 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		16
Plug Wire Entry		180°
Current - UL		15 A
Voltage - IEC		600 A
Voltage - UL		300 A

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
HTSUS		9536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
