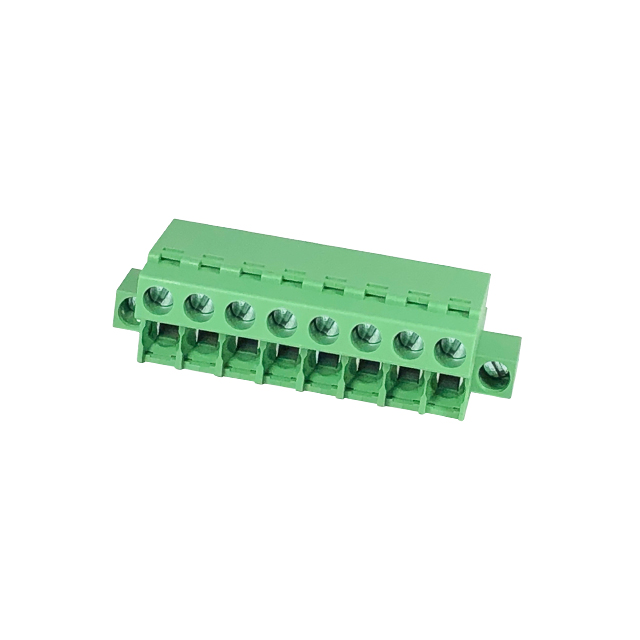

2ESDFM-08P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2ESDFM-08P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-2ESDFM-08P-ND 2861-2ESDFM-08P
Description	TERM BLK 8POS 5.08MM SCRW PLG
Detailed Description	8 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) Free Hanging (In-Line)

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		2ESDFM
Packaging		Bulk
Part Status		Active
Features		Mating Flange, Retention Latches
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		8
Pitch		0.200" (5.08mm)
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw
Current - IEC		18A
Number of Levels		1
Wire Gauge or Range - AWG		12-24 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		8
Contact Mating Finish		Tin
Current - UL		15 A
Voltage - IEC		600 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
