2ESDF-10P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2ESDF-10P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-2ESDF-10P-ND 2861-2ESDF-10P

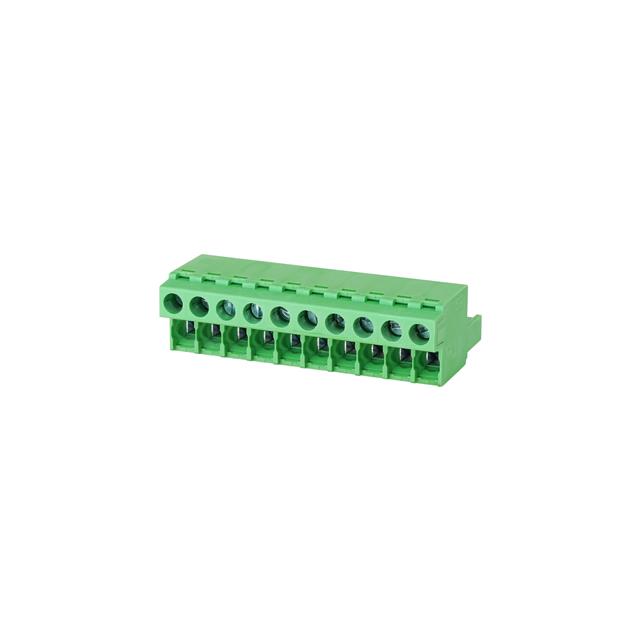

Description	TERM BLK 10POS 5.08mm SCRW PLG
Detailed Description	10 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		ESDF
Packaging		Bulk
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Green
Mounting Type		Free Hanging (In-Line)
Number of Positions		10
Pitch		0.200" (5.08mm)
Screw Size		M2.5
Type		Plug, Female Sockets
Operating Temperature		-40°C ~ 120°C
Termination Style		Screw
Material Flammability Rating		UL94 V-0
Current - IEC		18A
Number of Levels		1
Wire Gauge or Range - AWG		12-24 AWG
Wire Gauge or Range - mm²		0.2-4mm²
Positions Per Level		10
Contact Material		Copper Alloy
Plug Wire Entry		180°
Housing Material		Polyamide (PA), Nylon
Torque - Screw		0.5 Nm (4.4 Lb-In)
Contact Mating Finish		Tin
Wire Strip Length		9-10mm
Insulation Height		0.579" (14.70mm)
Current - UL		15 A
Voltage - IEC		600 V
Voltage - UL		300 V
