2EHDRM-09P _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2EHDRM-09P
Manufacturer	DINKLE Corporation USA
Other Part Numbers	2861-2EHDRM-09P-ND 2861-2EHDRM-09P
Description	TERM BLK 9POS 5.08MM HDR

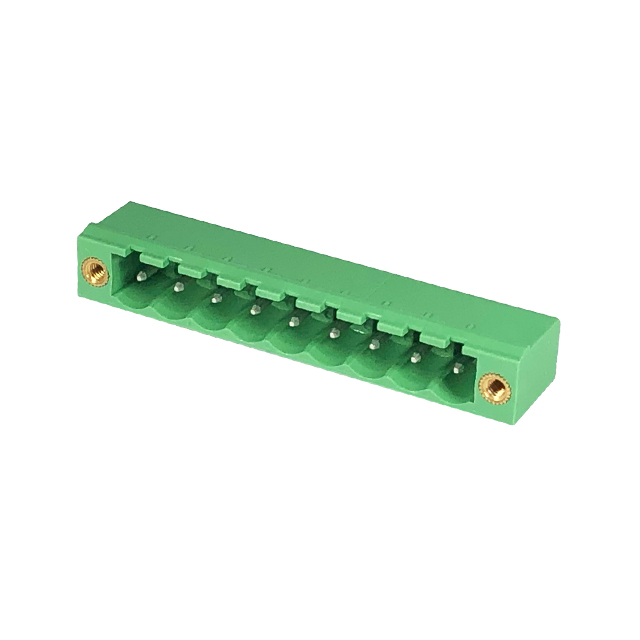

Detailed Description	9 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Through Hole
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		DINKLE Corporation USA
Series		2EHDRM
Packaging		Bulk
Part Status		Active
Features		Mating Flange
Color		Green
Mounting Type		Through Hole
Number of Positions		9
Pitch		0.200" (5.08mm)
Type		Header, Male Pins, Shrouded (4 Side)
Operating Temperature		-40°C ~ 120°C
Termination Style		Solder
Current - IEC		18A
Number of Levels		1
Positions Per Level		9
Header Orientation		90°, Right Angle
Contact Mating Finish		Tin
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		300 V

RESOURCE TYPE		LINK
Datasheets		2EHDRM-09P

ATTRIBUTE		DESCRIPTION
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
