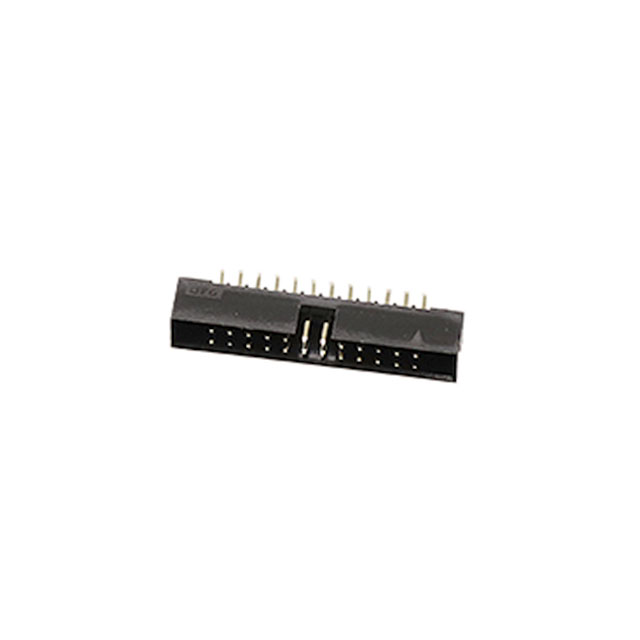

2BHR-24-VUA _ Headers, Male Pins_Rectangular Connectors_Connectors, Interconnects

Part Number	2BHR-24-VUA
Manufacturer	Adam Tech
Other Part Numbers	2057-2BHR-24-VUA-ND 2057-2BHR-24-VUA
Description	CONN HEADER VERT 24POS 2MM
Detailed Description	Connector Header Through Hole 24 position 0.079" (2.00mm)
Manufacturer Standard Lead Time	14 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		Adam Tech
Series		2BHR
Packaging		Tray
Part Status		Active
Features		Keying Slot
Connector Type		Header
Voltage Rating		250VAC
Current Rating (Amps)		1A
Mounting Type		Through Hole
Number of Positions		24
Number of Rows		2
Style		Board to Cable/Wire
Operating Temperature		-40°C ~ 105°C
Contact Type		Male Pin
Fastening Type		Push-Pull
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Brass
Insulation Color		Black
Pitch - Mating		0.079" (2.00mm)
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		Flash
Contact Finish - Post		Gold
Contact Finish Thickness - Post		Flash
Contact Shape		Square
Contact Length - Post		0.110" (2.79mm)
Insulation Height		0.220" (5.60mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polybutylene Terephthalate (PBT), Glass Filled
Row Spacing - Mating		0.079" (2.00mm)

RESOURCE TYPE		LINK
Datasheets		2BHR-24-VUA
Datasheets		ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
