Part Number |
2934 OR001
|
---|---|
Manufacturer | Alpha Wire |
Other Part Numbers |
2934OR001-ND
2934 OR001-ND
2934OR001
|

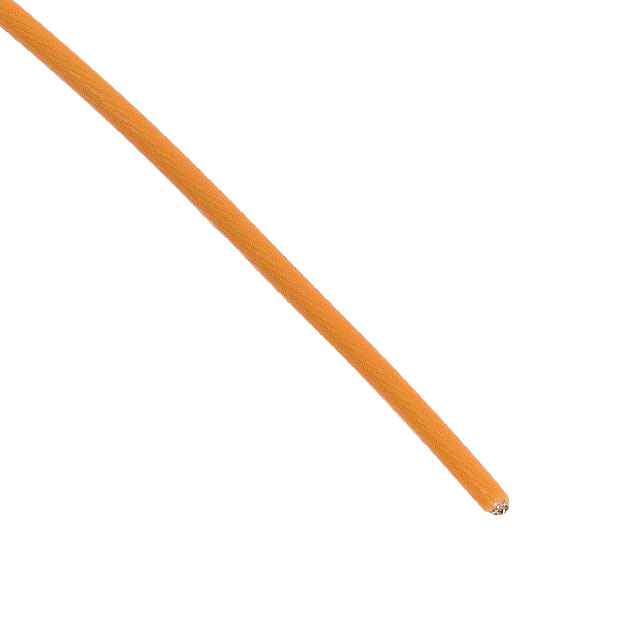

Description | HOOK-UP SOLID 34AWG ORANGE 1000' |
Detailed Description | 34 AWG Hook-Up Wire Solid Orange 600V 1000.0' (304.8m) |
Datasheet | Datasheet |
Category | ||
---|---|---|
Manufacturer | Alpha Wire | |
Series |
ThermoThin
|
|
Packaging |
Spool
|
|
Part Status | Obsolete | |
Features | Chemical Resistant, High Temperature, UV Resistant | |
Voltage | 600V | |
Length | 1000.0' (304.8m) | |
Wire Gauge | 34 AWG | |
Jacket (Insulation) Material | Fluoropolymer | |
Conductor Strand | Solid | |
Operating Temperature | -150°C ~ 300°C | |
Cable Type | Hook-Up | |
Jacket (Insulation) Diameter | 0.014" (0.36mm) | |
Ratings | UL Style 11540 | |
Jacket (Insulation) Thickness | 0.004" (0.09mm) | |
Conductor Material | Copper, Nickel Coated | |
Jacket Color | Orange |
RESOURCE TYPE | LINK | |
---|---|---|
Datasheets | Soldering Nickel Plated Copper | |
Datasheets | Mult Devs - obsolete 05/MAY/2020 |
ATTRIBUTE | DESCRIPTION | |
---|---|---|
ECCN | EAR99 | |
HTSUS | 8544.49.3080 | |
Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
REACH Status | REACH Unaffected | |
RoHS Status | ROHS3 Compliant |
