292303-3

Part Number
292303-3
Manufacturer TE Connectivity AMP Connectors
Other Part Numbers
A123218-ND
292303-3-ND
A123218
3937-292303-3
Q16135109
2266-292303-3
Description CONN RCPT USB2.0 TYPEA 4POS R/A

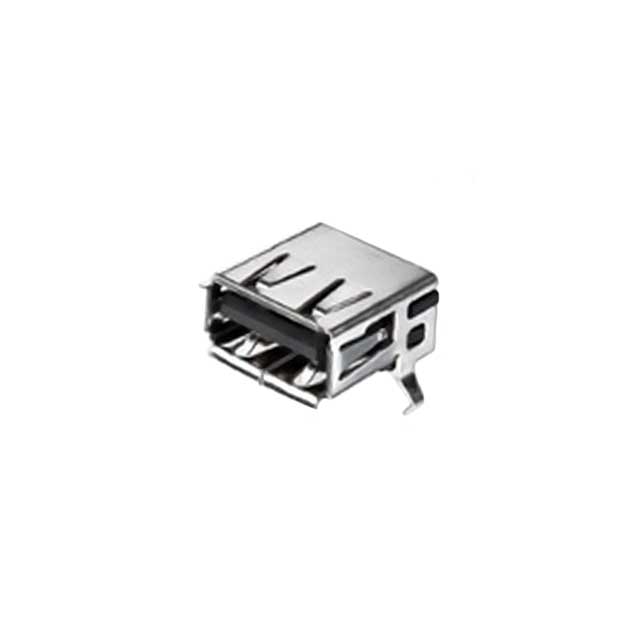

Detailed Description USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Manufacturer Standard Lead Time 9 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity AMP Connectors
Series
Packaging
Tube
Part Status Active
Features Board Lock
Voltage - Rated 30VAC
Number of Contacts 4
Connector Type USB-A (USB TYPE-A)
Gender Receptacle
Current Rating (Amps) 1A per Contact
Mounting Type Through Hole, Right Angle
Shielding Shielded
Operating Temperature -55°C ~ 85°C
Specifications USB 2.0
Termination Solder
Mounting Feature Horizontal
Mating Cycles 1500
Number of Ports 1

Documents & Media

RESOURCE TYPE LINK
Datasheets 292303-3
Datasheets 292303-3 Statement of Compliance
Datasheets 292303-3.pdf
Datasheets 292303 Drawing

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.69.4040
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
RoHS Status RoHS Compliant
