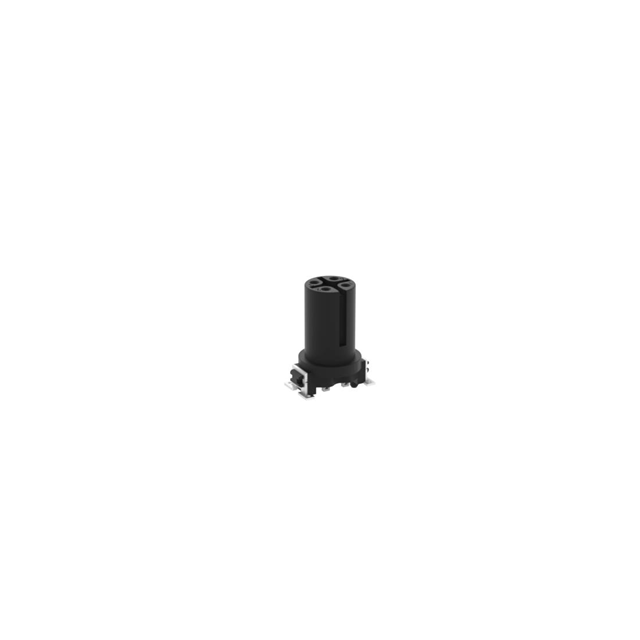

284322-E _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	284322-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-284322-E-ND 2684-284322-ND 2684-284322 2684-284322-E 284322
Description	CONN FMALE INSERT 4P SLDR EYELET
Detailed Description	4 Position Circular Connector Insert, Female Sockets Solder Eyelet(s)
Manufacturer Standard Lead Time	35 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		TE Connectivity ERNI
Series		M8/M12
Packaging		Bag
Part Status		Active
Features		Board Guide, Insert Only, Requires Shell
Connector Type		Insert, Female Sockets
Color		Black
Current Rating (Amps)		4.8A
Mounting Type		Surface Mount
Shielding		Unshielded
Number of Positions		4
Orientation		A
Shell Size - Insert		M12-4
Operating Temperature		-55°C ~ 125°C
Termination		Solder Eyelet(s)
Ingress Protection		IP67 - Dust Tight, Waterproof
Material Flammability Rating		UL94 V-0
Contact Material		Copper Alloy
Contact Finish - Mating		Gold
Insert Material		Liquid Crystal Polymer (LCP)

RESOURCE TYPE		LINK
Datasheets		PN Change 26/JAN/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
