282123-75 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	282123-75
Manufacturer	Connex (Amphenol RF)
Other Part Numbers	282123-75-ND 3937-282123-75

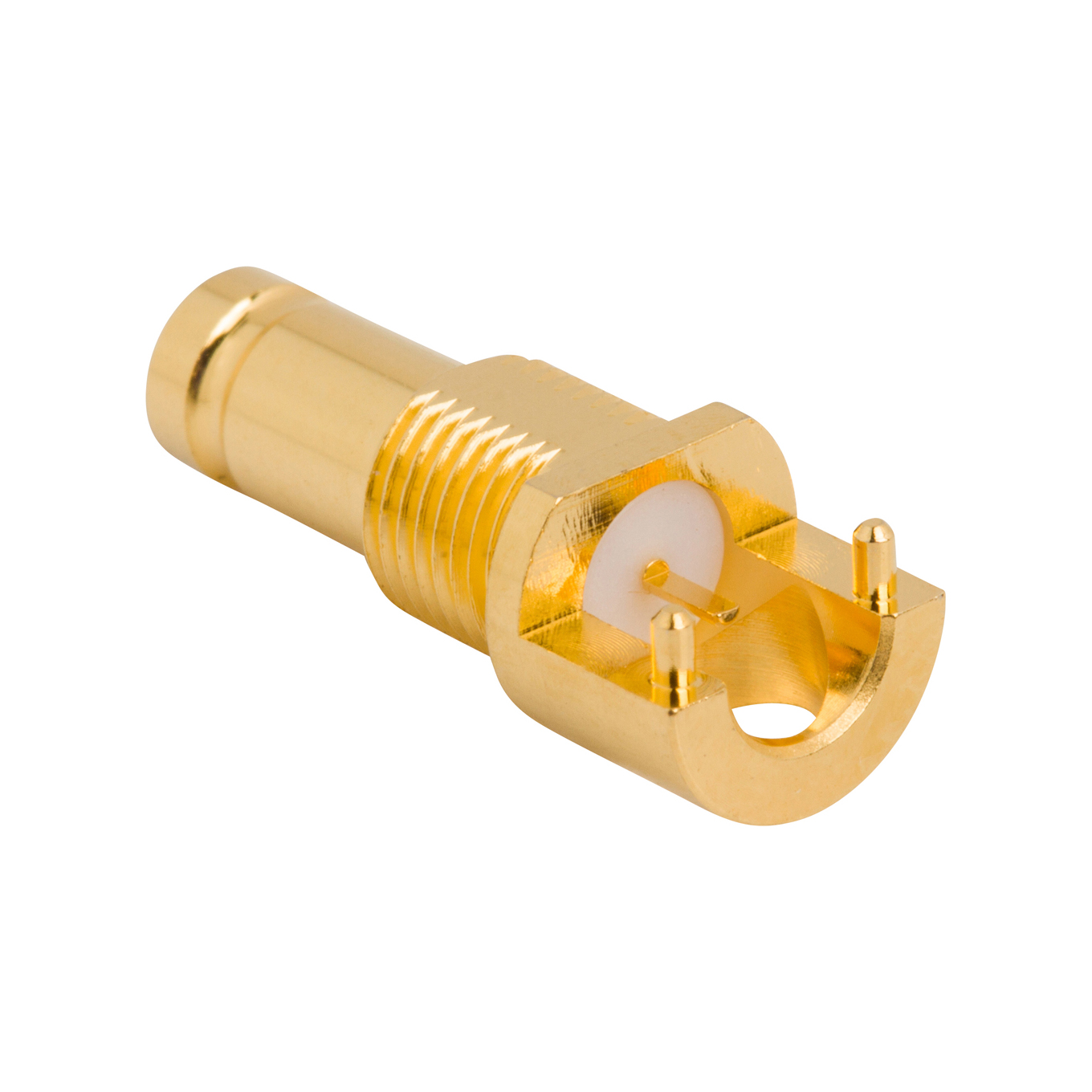

Description	1.0/2.3 STRAIGHT PCB JACK, EDGE
Detailed Description	1.0/2.3 Connector Jack, Female Socket 75 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Connex (Amphenol RF)
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Female Socket
Contact Termination		Solder
Impedance		75 Ohms
Mounting Type		Board Edge, End Launch; Through Hole, Right Angle
Operating Temperature		-65°C ~ 165°C
Fastening Type		Push-Pull
Includes		3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Connector Style		1.0/2.3
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Solder
Center Contact Material		Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1

ATTRIBUTE		DESCRIPTION
California Prop 65		California Prop 65 Information
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Affected
RoHS Status		ROHS3 Compliant
