280-612 _ Din Rail, Channel_Terminal Blocks_Connectors, Interconnects_

+86-0755-8325-4547

280-612

280-612

Part Number	280-612
Manufacturer	WAGO
Other Part Numbers	2946-280-612-ND 280612 0280612 2943-280-612-ND 51133235 0280-612 2943-280-612 2946-280-612 0280-0612

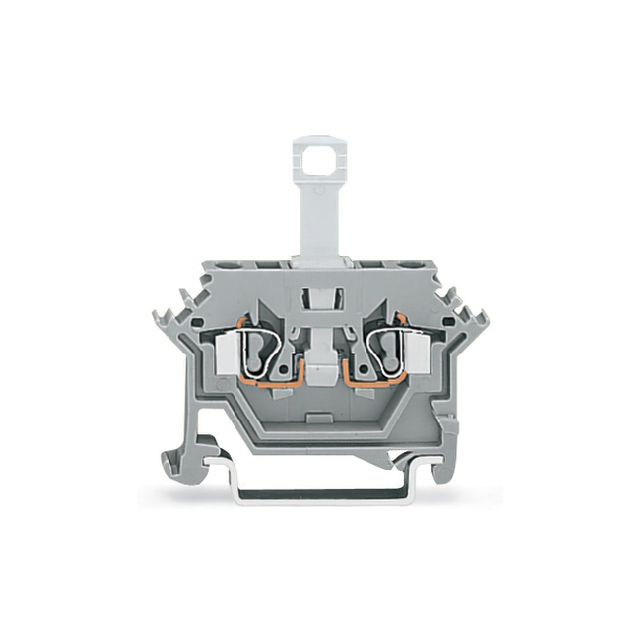

Description	2-CONDUCTOR DISCONNECT TERMINAL
Detailed Description	Terminal Block Connector 2 Position Disconnect Gray 12-28 AWG
Manufacturer Standard Lead Time	12 weeks

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		WAGO
Series
Packaging		Box
Part Status		Active
Color		Gray
Type		Disconnect
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		5.0mm
Voltage - IEC		400V
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Disconnect Type		Disconnect Tab
Stripping Length		8mm ~ 9mm
Current - IEC		10 A
Number of Positions		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
