27000.6

27000.6

Part Number	27000.6
Manufacturer	Conta-Clip
Other Part Numbers	2080-27000.6-ND PRK 1,5/2A GR 2080-PRK1,5/2AGR-ND 2080-PRK1,5/2AGR 2080-27000.6 27000.6
Description	FEED THRU TB PUSH-INGREY

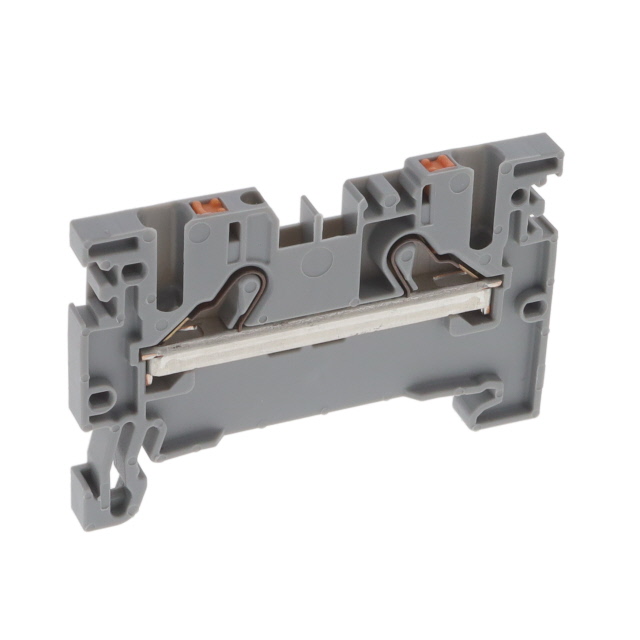

Detailed Description	Terminal Block Connector 2 Position Feed Through Gray 14-26 AWG
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Din Rail, Channel
Manufacturer		Conta-Clip
Series		PRK
Packaging		Box
Part Status		Active
Color		Gray
Type		Feed Through
Termination Style		Push In, Spring
Material - Insulation		Polyamide (PA66), Nylon 6/6
Material Flammability Rating		UL94 V-0
Number of Levels		1
Terminal - Width		3.5mm
Voltage - IEC		500V
Wire Gauge or Range - AWG		14-26 AWG
Wire Gauge or Range - mm²		0.14-1.5mm²
Stripping Length		10mm
Current - IEC		17.5 A
Number of Positions		2

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		RoHS Compliant
