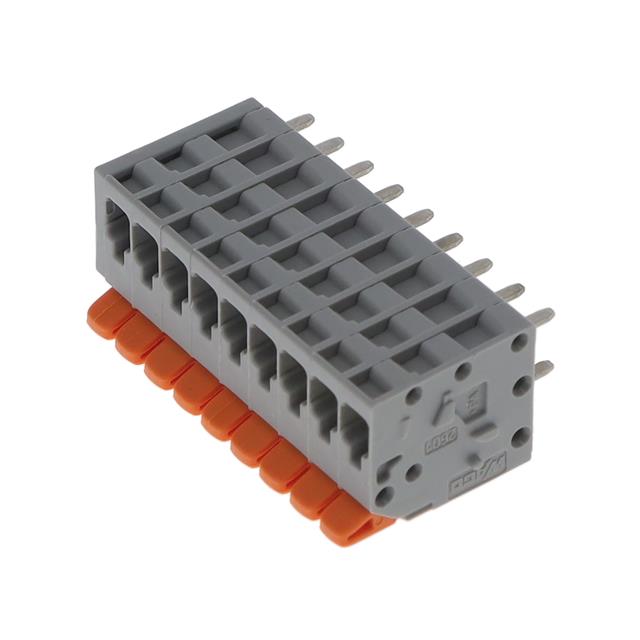

2601-3109 _ Wire to Board_Terminal Blocks_Connectors, Interconnects

Part Number	2601-3109
Manufacturer	WAGO
Other Part Numbers	2946-2601-3109-ND 2946-2601-3109
Description	TERM BLK PCB LEVER 3.5MM 9POS
Detailed Description	9 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		2601
Packaging		Box
Part Status		Active
Features		Lever Actuated
Color		Gray
Mounting Type		Through Hole
Wire Gauge		16-26 AWG
Pitch		0.138" (3.50mm)
Operating Temperature		-60°C ~ 105°C
Mating Orientation		Vertical with Board
Positions Per Level		9
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Material - Plating		Electrolytic Copper - Tin Plated
Clamp Material - Plating		Steel - Nickel Plated
Wire Termination		Screwless - Leg Spring, Push-In Spring
Current		10 A
Number of Levels		1
Voltage		300 V

RESOURCE TYPE		LINK
Datasheets		2601-3109

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

Can ship immediately.
