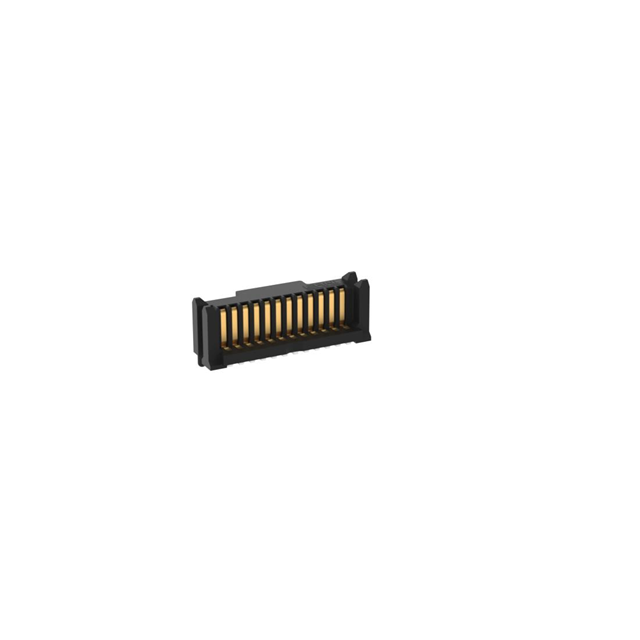

254168-E

254168-E

Part Number	254168-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-254168-ETR-ND 2684-254168-ECT-ND 2684-254168-EDKR-ND 2684-254168TR-ND 2684-254168-ETR 2684-254168DKR 2684-254168CT-ND 2684-254168DKR-ND 2684-254168CT 254168 2684-254168TR 2684-254168-ECT 2684-254168-EDKR
Description	MICROSTC HERM 12POS ANTIMAG
Detailed Description	12 Position Connector Plug, Non-Gendered Surface Mount Gold
Manufacturer Standard Lead Time	17 weeks

Product Attributes

Category		Connectors, Interconnects Rectangular Connectors Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer		TE Connectivity ERNI
Series		MICROSTAC
Packaging		Tape & Reel (TR) Cut Tape (CT)
Part Status		Active
Features		Board Guide
Connector Type		Plug, Non-Gendered
Contact Finish		Gold
Mounting Type		Surface Mount
Number of Positions		12
Pitch		0.031" (0.80mm)
Height Above Board		0.171" (4.34mm)
Mated Stacking Heights		5mm
Number of Rows		1

Documents & Media

RESOURCE TYPE		LINK

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		3 (168 Hours)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 5129

Can ship immediately.
