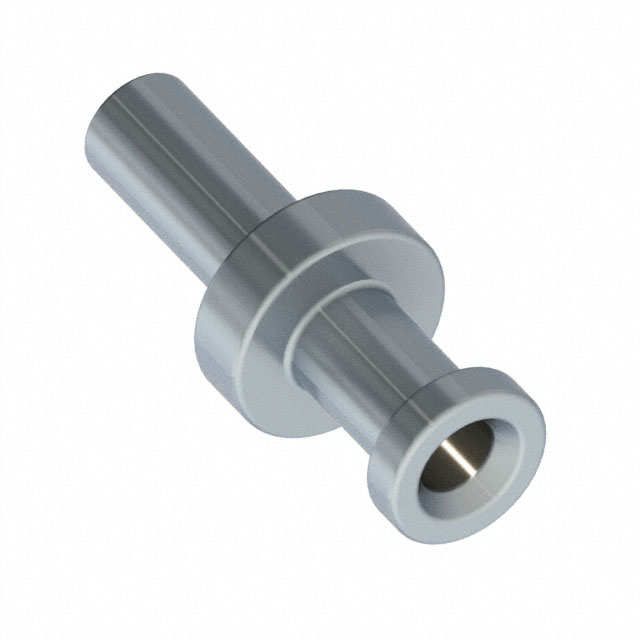

2506-4-00-01-00-00-07-0 _ Turret Connectors_Terminals_Connectors, Interconnects

Part Number	2506-4-00-01-00-00-07-0
Manufacturer	Mill-Max
Other Part Numbers	2506-400010000070-ND 2506400010000070 2506-400010000070
Description	TERM TURRET SINGLE L=3.96MM
Detailed Description	Terminal Turret Connector Single End 0.156" (3.96mm) Tin-Lead
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminals Turret Connectors
Manufacturer		Mill-Max
Series		2506
Packaging		Bulk
Part Status		Active
Contact Finish		Tin-Lead
Mounting Type		Through Hole
Insulation		Non-Insulated
Board Thickness		0.125" (3.18mm)
Terminal Type		Single End
Flange Diameter		0.125" (3.18mm)
Length - Overall		0.303" (7.70mm)
Termination		Swage
Length - Above Board		0.156" (3.96mm)
Mounting Hole Diameter		0.067" (1.70mm)
Contact Finish Thickness		200.0µin (5.08µm)
Contact Material		Brass Alloy
Diameter - Turret Head		0.093" (2.36mm)
Number of Turrets		Single
Length - Below Flange		0.147" (3.73mm)
Staking Side OD		0.062" (1.57mm)
Staking Side ID		0.043" (1.09mm)

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		RoHS non-compliant
