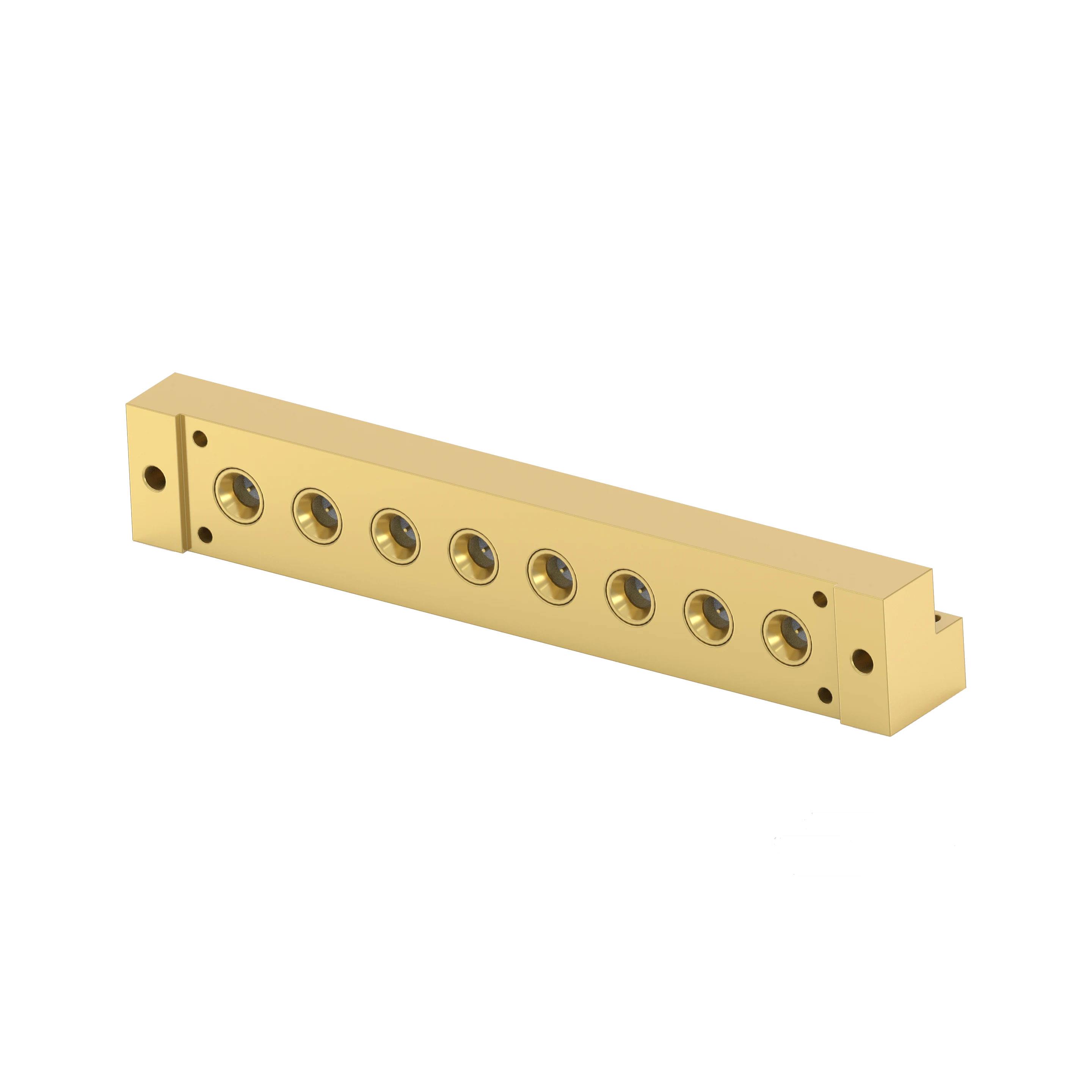

2441485-1 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	2441485-1
Manufacturer	TE Connectivity Measurement Specialties
Other Part Numbers	223-2441485-1-ND 223-2441485-1
Description	SSMP FD MALE S/T 8-PORT EDGE LAU
Detailed Description	SMPM Connector Plug, Male Pin 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
Manufacturer Standard Lead Time	10 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		TE Connectivity Measurement Specialties
Series
Packaging		Tray
Part Status		Active
Features		Full Detent
Connector Type		Plug, Male Pin
Contact Termination		Solder
Impedance		50 Ohms
Mounting Type		Board Edge, End Launch; Through Hole, Right Angle
Operating Temperature		-55°C ~ 125°C
Fastening Type		Snap-On
Connector Style		SMPM
Dielectric Material		Polytetrafluoroethylene (PTFE)
Body Material		Stainless Steel
Housing Color		Gold
Mating Cycles		100
Shield Termination		Solder
Center Contact Material		Beryllium Copper
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		65 GHz
Number of Ports		8
Voltage Rating		170 V

ATTRIBUTE		DESCRIPTION
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
