2441483-1

Part Number
2441483-1
Manufacturer TE Connectivity Measurement Specialties
Other Part Numbers
223-2441483-1-ND
223-2441483-1

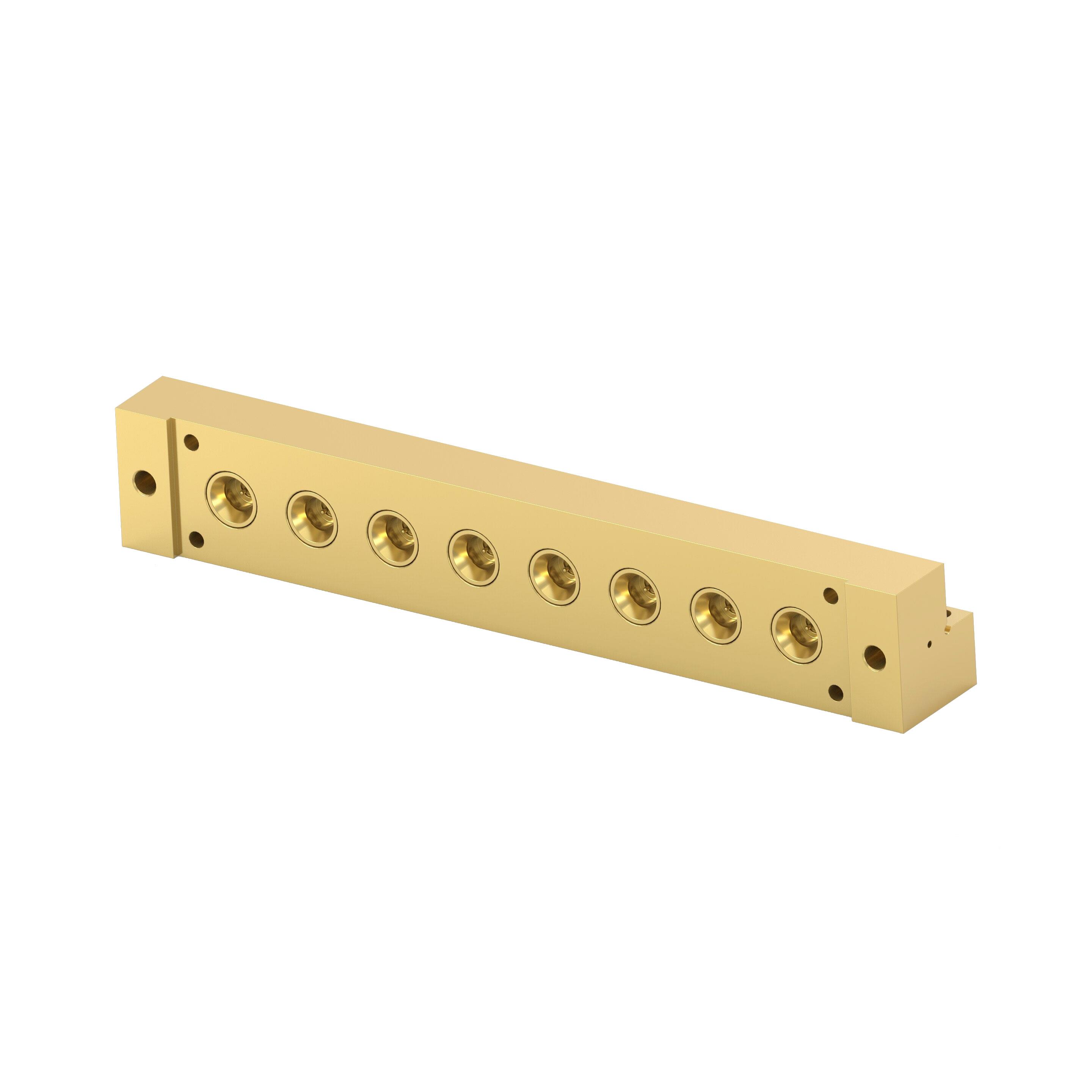

Description SSMP SB MALE S/T 8-PORT EDGE LAU
Detailed Description SMPM Connector Plug, Male Pin 50 Ohms Board Edge, End Launch; Through Hole, Right Angle Solder
Manufacturer Standard Lead Time 10 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Measurement Specialties
Series
Packaging
Tray
Part Status Active
Features Smooth Bore
Connector Type Plug, Male Pin
Contact Termination Solder
Impedance 50 Ohms
Mounting Type Board Edge, End Launch; Through Hole, Right Angle
Operating Temperature -55°C ~ 125°C
Fastening Type Snap-On
Connector Style SMPM
Dielectric Material Polytetrafluoroethylene (PTFE)
Body Material Stainless Steel
Housing Color Gold
Mating Cycles 100
Shield Termination Solder
Center Contact Material Beryllium Copper
Body Finish Gold
Center Contact Plating Gold
Frequency - Max 65 GHz
Number of Ports 8
Voltage Rating 170 V

Documents & Media

RESOURCE TYPE LINK
Datasheets 2441483-1
Datasheets 2441483-1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
HTSUS 8536.69.4010
RoHS Status ROHS3 Compliant
