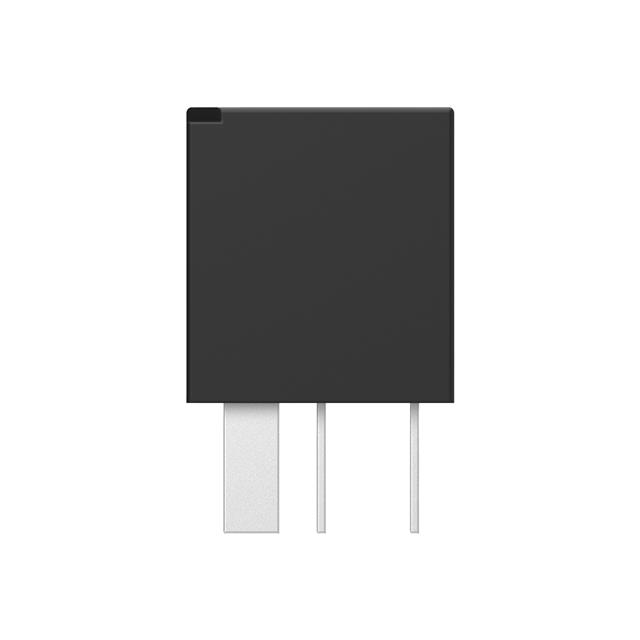

2359392-1

Part Number
2359392-1
Manufacturer TE Connectivity Potter & Brumfield Relays
Other Part Numbers
41-2359392-1-ND
V23074-A1002-A402
41-2359392-1
Description RELAY V23074A1002A402-EV-CBOX
Manufacturer Standard Lead Time 22 weeks
Datasheet Datasheet

Product Attributes

Category
Manufacturer TE Connectivity Potter & Brumfield Relays
Series
Micro Relay A
Packaging
Box
Part Status Active
Features Resistor
Mounting Type Socketable
Coil Voltage 24VDC
Operating Temperature -40°C ~ 125°C
Termination Style Plug In, Quick Connect - Multiple Sizes
Coil Current 55.8 mA
Coil Type Non Latching
Contact Material Silver Alloy
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 30 A
Switching Voltage 32VDC - Max
Must Release Voltage 3.6 VDC
Must Operate Voltage 14.4 VDC
Operate Time 6 ms
Release Time 3 ms
Coil Power 1.34W
Coil Resistance 430 Ohms

Documents & Media

RESOURCE TYPE LINK
Datasheets 2359392-1

Environmental & Export Classifications

ATTRIBUTE DESCRIPTION
ECCN EAR99
HTSUS 8536.41.0050
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status Vendor Undefined
RoHS Status ROHS3 Compliant

In Stock: 480

Can ship immediately.
