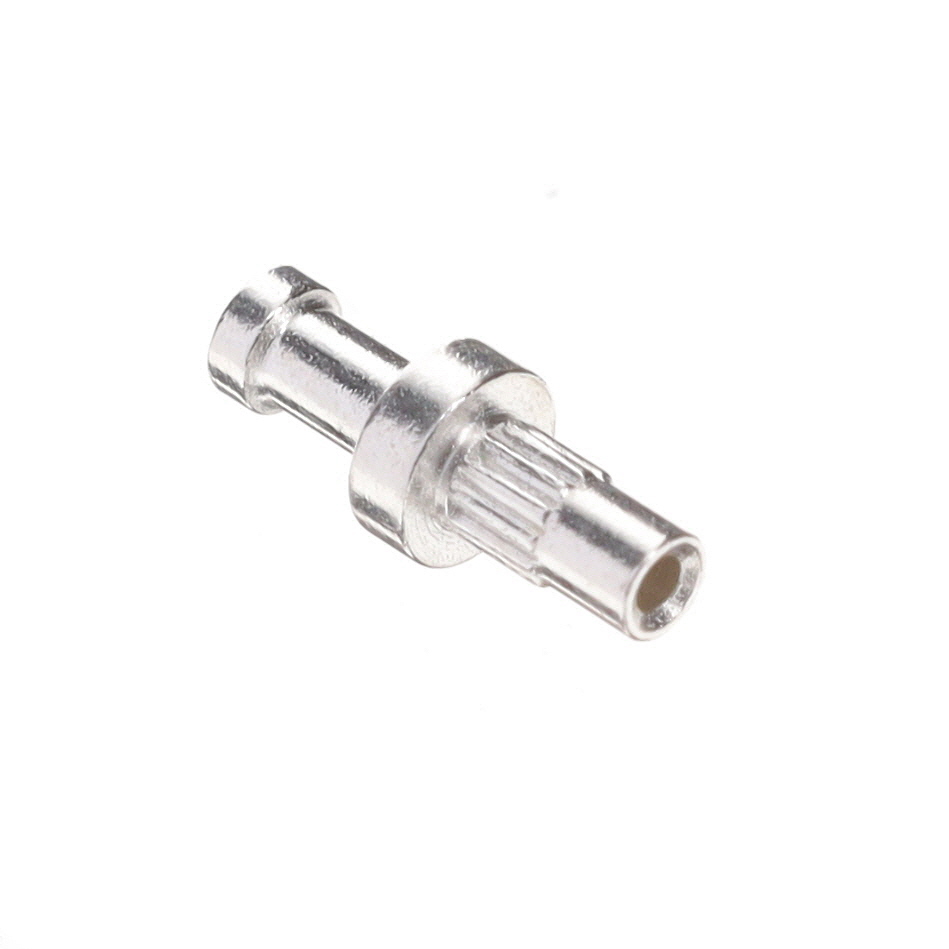

2333-1-00-44-00-00-07-0 _ Turret Connectors_Terminals_Connectors, Interconnects

Part Number	2333-1-00-44-00-00-07-0
Manufacturer	Mill-Max
Other Part Numbers	2333-100440000070-ND 2333-100440000070 2333100440000070
Description	TERM TURRET SINGLE L=3.18MM
Detailed Description	Terminal Turret Connector Single End 0.125" (3.18mm) Silver
Manufacturer Standard Lead Time	5 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminals Turret Connectors
Manufacturer		Mill-Max
Series		ECS-2333
Packaging		Bulk
Part Status		Active
Contact Finish		Silver
Mounting Type		Through Hole
Insulation		Non-Insulated
Board Thickness		0.078" (1.98mm)
Terminal Type		Single End
Flange Diameter		0.090" (2.29mm)
Length - Overall		0.228" (5.79mm)
Termination		Press-Fit, Knurled, Swage
Length - Above Board		0.125" (3.18mm)
Mounting Hole Diameter		0.052" (1.32mm)
Contact Finish Thickness		300.0µin (7.62µm)
Contact Material		Brass Alloy
Diameter - Turret Head		0.059" (1.50mm)
Number of Turrets		Single
Length - Below Flange		0.103" (2.62mm)
Staking Side OD		0.048" (1.22mm)
Staking Side ID		0.026" (0.66mm)

RESOURCE TYPE		LINK
Datasheets		RoHS Cert

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
