232-737 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	232-737
Manufacturer	WAGO
Other Part Numbers	2946-232-737-ND 51138680 0232-737 232737 0232-0737 0232737 2943-232-737-ND 2946-232-737 2943-232-737

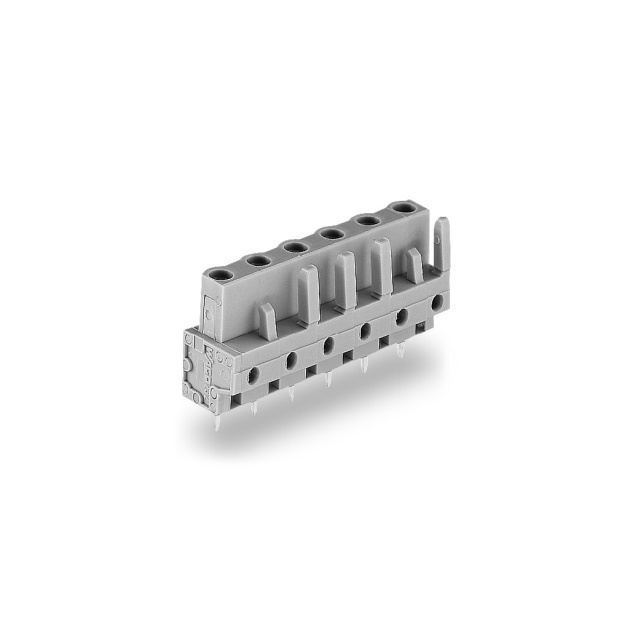

Description	THT FEMALE HEADER; 0.6 X 1.0 MM
Detailed Description	7 Position Terminal Block Header, Female Sockets 0.295" (7.50mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic
Packaging		Box
Part Status		Active
Features		Retention Latches (Non-Wire Side)
Color		Gray
Mounting Type		Through Hole
Number of Positions		7
Pitch		0.295" (7.50mm)
Type		Header, Female Sockets
Operating Temperature		-60°C ~ 85°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		12A
Number of Levels		1
Positions Per Level		7
Contact Material		Copper Alloy
Header Orientation		Vertical
Housing Material		Polyamide (PA66), Nylon 6/6
Contact Mating Finish		Tin
Contact Tail Length		0.197" (5.00mm)
Insulation Height		0.719" (18.26mm)
Current - UL		15 A
Voltage - IEC		1 kV
Voltage - UL		600 V

RESOURCE TYPE		LINK
Datasheets		232-737

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
