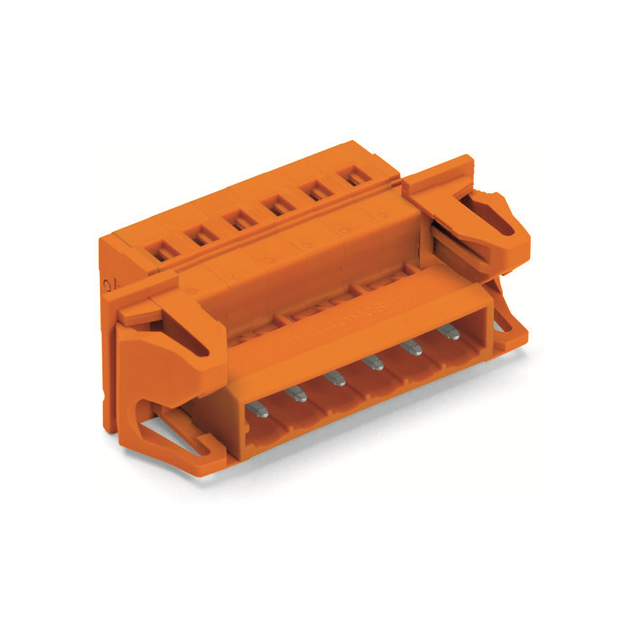

231-642/114-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	231-642/114-000
Manufacturer	WAGO
Other Part Numbers	2946-231-642/114-000-ND 0231642/114000 2943-231-642/114-000 2946-231-642/114-000 231642/114000 2943-231-642/114-000-ND 51244144 0231-0642/0114-0000 0231-642/114-000
Description	1-CONDUCTOR MALE CONNECTOR; SNAP
Detailed Description	12 Position Terminal Block Plug, Male Pins 0.200" (5.08mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		MCSMIDI Classic
Packaging		Box
Part Status		Active
Features		Ejector Latches
Color		Orange
Mounting Type		Free Hanging (In-Line)
Number of Positions		12
Pitch		0.200" (5.08mm)
Type		Plug, Male Pins
Operating Temperature		-60°C ~ 100°C
Termination Style		Screwless - Spring Cage, Tension Clamp
Current - IEC		12A
Number of Levels		1
Wire Gauge or Range - AWG		12-28 AWG
Wire Gauge or Range - mm²		0.08-2.5mm²
Positions Per Level		12
Plug Wire Entry		180°
Contact Mating Finish		Tin
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		600 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
