2106-1521-002 _ Coaxial Connector (RF) Assemblies_Coaxial Connectors (RF)_Connectors, Interconnects

Part Number	2106-1521-002
Manufacturer	Radiall USA, Inc.
Other Part Numbers	2201-2106-1521-002-ND 2201-2106-1521-002

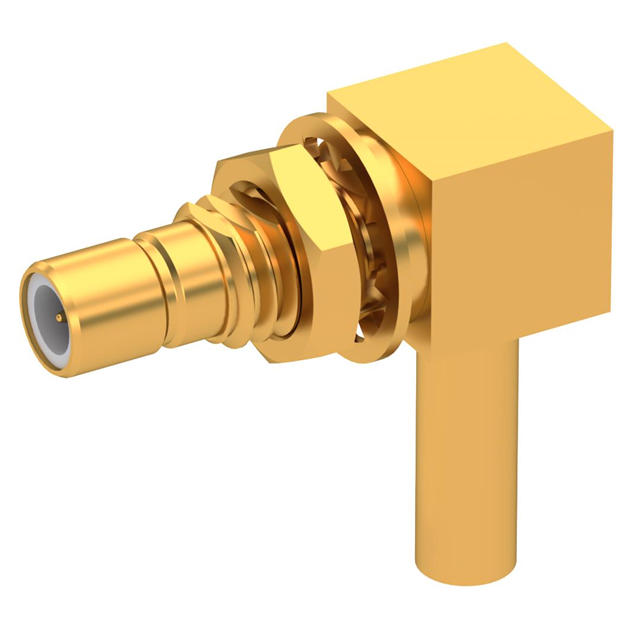

Description	SMB / RIGHT ANGLE JACK MALE CRIM
Detailed Description	SMB Connector Jack, Male Pin 50 Ohms Panel Mount, Right Angle Crimp
Manufacturer Standard Lead Time	20 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Coaxial Connectors (RF) Coaxial Connector (RF) Assemblies
Manufacturer		Radiall USA, Inc.
Series
Packaging		Bulk
Part Status		Active
Connector Type		Jack, Male Pin
Contact Termination		Crimp
Impedance		50 Ohms
Mounting Type		Panel Mount, Right Angle
Cable Group		RG-178, 196
Operating Temperature		-65°C ~ 165°C
Insertion Loss		0.6dB
Fastening Type		Snap-On
Connector Style		SMB
Dielectric Material		Polytetrafluoroethylene (PTFE)
Mounting Feature		Bulkhead - Front Side Nut
Body Material		Brass
Housing Color		Gold
Mating Cycles		500
Shield Termination		Crimp
Center Contact Material		Brass
Body Finish		Gold
Center Contact Plating		Gold
Frequency - Max		4 GHz
Number of Ports		1
Voltage Rating		250 V

RESOURCE TYPE		LINK
Datasheets		2106-1521-002

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4010
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
