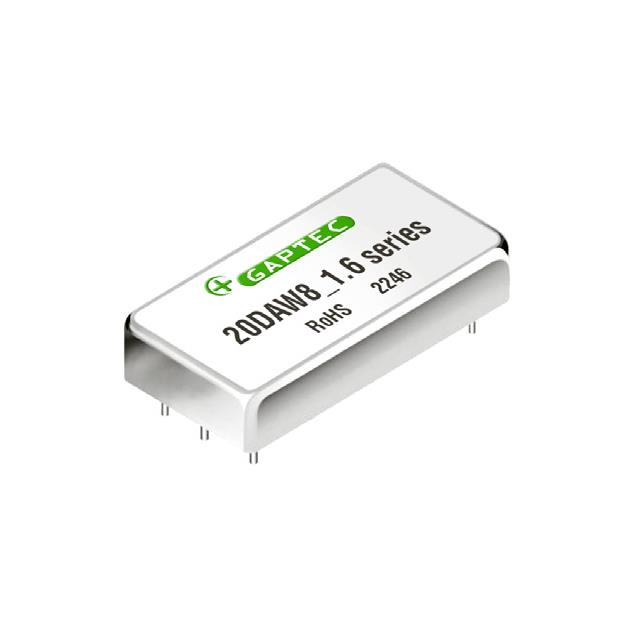

20DAW8_3612S1.6 _ DC DC Converters_Power Supplies

Part Number	20DAW8_3612S1.6
Manufacturer	GAPTEC Electronic
Other Part Numbers	3182-20DAW8_3612S1.6TR-ND 3182-20DAW8_3612S1.6CT 3182-20DAW8_3612S1.6CTINACTIVE 3182-20DAW8_3612S1.6DKR 3182-20DAW8_3612S1.6DKR-ND 3182-20DAW8_3612S1.6TR-ND 3182-20DAW8_3612S1.6 3182-20DAW8_3612S1.6CT-ND 3182-20DAW8_3612S1.6TR 3182-20DAW8_3612S1.6DKRINACTIVE 3182-20DAW8_3612S1.6-ND
Description	DC-DC INDUSTRIAL
Detailed Description	Isolated Module DC DC Converter 1 Output 12V 1.667A 9V - 75V Input
Manufacturer Standard Lead Time	9 weeks
Datasheet	Datasheet

Category		Power Supplies - Board Mount DC DC Converters
Manufacturer		GAPTEC Electronic
Series		20DAW8_1.6 (20W)
Packaging		Tape & Reel (TR)
Part Status		Active
Features		Adjustable Output
Package / Case		6-DIP Module
Size / Dimension		2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Mounting Type		Through Hole
Type		Isolated Module
Operating Temperature		-40°C ~ 83°C (With Derating)
Applications		ITE (Commercial)
Voltage - Input (Max)		75V
Efficiency		91%
Current - Output (Max)		1.667A
Voltage - Input (Min)		9V
Voltage - Output 1		12V
Power (Watts)		20 W
Number of Outputs		1
Voltage - Isolation		1.6 kV

RESOURCE TYPE		LINK
Datasheets		20DAW8_3612S1.6

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8504.40.9580
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		RoHS Compliant
