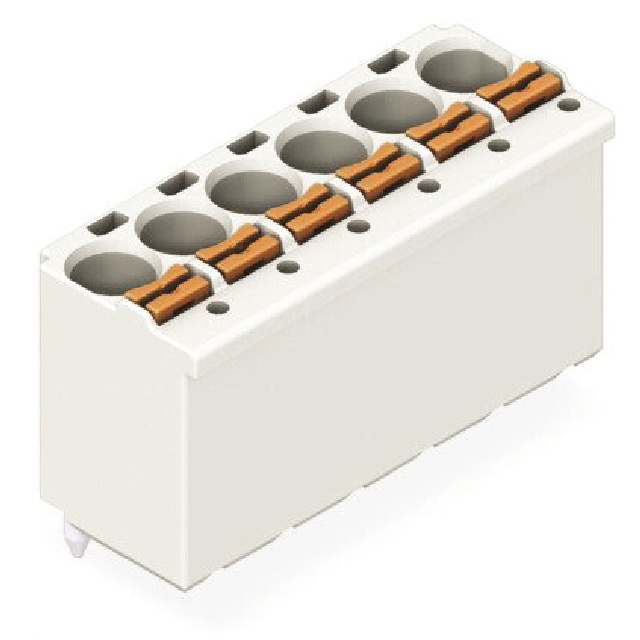

2092-1172/200-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2092-1172/200-000
Manufacturer	WAGO
Other Part Numbers	2946-2092-1172/200-000-ND 2092-1172/0200-0000 02092-1172/200-000 020921172/200000 2943-2092-1172/200-000-ND 2946-2092-1172/200-000 2943-2092-1172/200-000 51253685 20921172/200000
Description	1-CONDUCTOR THR FEMALE HEADER; 1
Detailed Description	2 Position Terminal Block Header, Female Sockets 0.197" (5.00mm) Vertical Through Hole
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		picoMAX® 5.0
Packaging		Box
Part Status		Active
Features		Push Button Actuated
Color		Gray
Mounting Type		Through Hole
Number of Positions		2
Pitch		0.197" (5.00mm)
Type		Header, Female Sockets
Operating Temperature		-60°C ~ 100°C
Termination Style		Solder
Material Flammability Rating		UL94 V-0
Current - IEC		16A
Number of Levels		1
Wire Gauge or Range - AWG		12-24 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		2
Contact Material		Electrolytic Copper
Header Orientation		Vertical
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Wire Strip Length		9-10mm
Contact Tail Length		0.094" (2.40mm)
Insulation Height		0.638" (16.20mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
RoHS Status		ROHS3 Compliant
