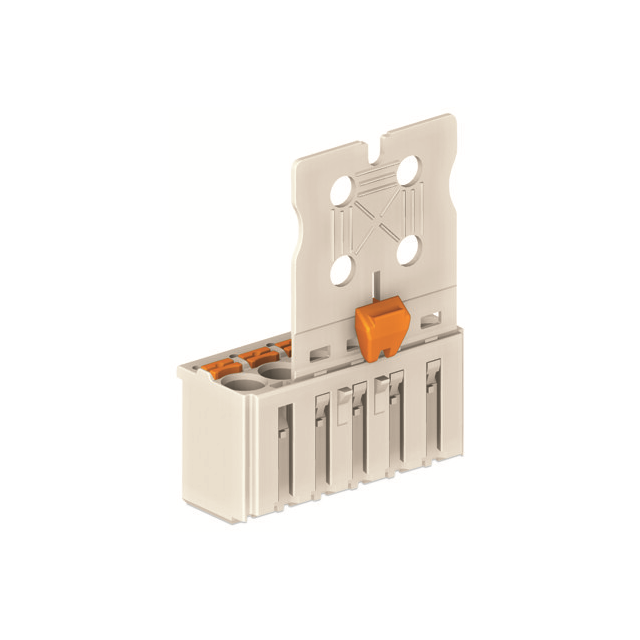

2092-1106/002-000 _ Headers, Plugs and Sockets_Terminal Blocks_Connectors, Interconnects

Part Number	2092-1106/002-000
Manufacturer	WAGO
Other Part Numbers	2946-2092-1106/002-000-ND 20921106/002000 2943-2092-1106/002-000 02092-1106/002-000 2092-1106/0002-0000 2946-2092-1106/002-000 020921106/002000 51255044 2943-2092-1106/002-000-ND
Description	1-CONDUCTOR FEMALE PLUG; GRIPPIN
Detailed Description	6 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
Manufacturer Standard Lead Time	12 weeks

Category		Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Manufacturer		WAGO
Series		picoMAX® 5.0
Packaging		Box
Part Status		Active
Features		Push Button Actuated, Strain Relief
Color		Gray
Mounting Type		Free Hanging (In-Line)
Number of Positions		6
Pitch		0.197" (5.00mm)
Type		Plug, Female Sockets
Operating Temperature		-60°C ~ 100°C
Termination Style		Screwless - Leg Spring, Push-In Spring
Material Flammability Rating		UL94 V-0
Current - IEC		16A
Number of Levels		1
Wire Gauge or Range - AWG		12-24 AWG
Wire Gauge or Range - mm²		0.2-2.5mm²
Positions Per Level		6
Contact Material		Electrolytic Copper
Plug Wire Entry		180°
Housing Material		Polyphthalamide (PPA), Glass Filled
Contact Mating Finish		Tin
Wire Strip Length		9-10mm
Insulation Height		0.484" (12.30mm)
Current - UL		15 A
Voltage - IEC		630 V
Voltage - UL		300 V

RESOURCE TYPE		LINK

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		Not Applicable
RoHS Status		ROHS3 Compliant
