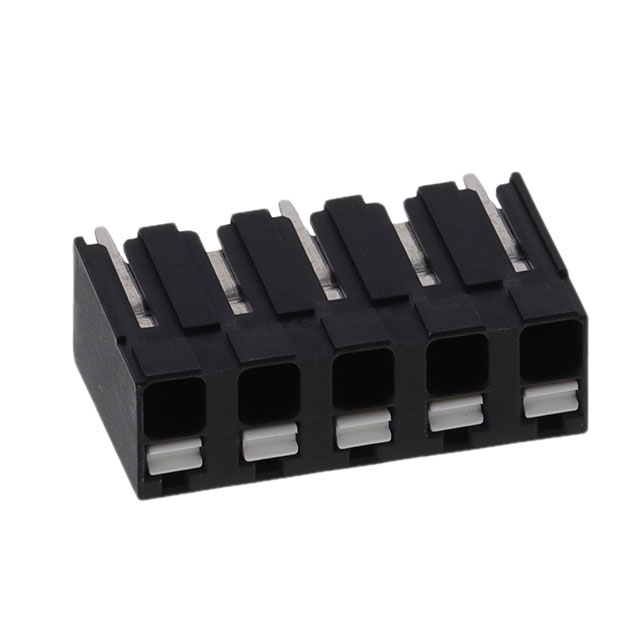

2086-3125

2086-3125

Part Number	2086-3125
Manufacturer	WAGO
Other Part Numbers	2946-2086-3125-ND 2946-2086-3125
Description	TERM BLK 5P TOP ENTRY 5.0MM PCB
Detailed Description	5 Position Wire to Board Terminal Block Vertical with Board 0.197" (5.00mm) Through Hole
Manufacturer Standard Lead Time	8 weeks
Datasheet	Datasheet

Product Attributes

Category		Connectors, Interconnects Terminal Blocks Wire to Board
Manufacturer		WAGO
Series		2086
Packaging		Tray
Part Status		Active
Features		Push Button Actuated
Color		Black
Mounting Type		Through Hole
Wire Gauge		16-24 AWG
Pitch		0.197" (5.00mm)
Mating Orientation		Vertical with Board
Positions Per Level		5
Wire Termination		Screwless - Push Button Clamp
Current		10 A
Number of Levels		1
Voltage		300 V

Documents & Media

RESOURCE TYPE		LINK
Datasheets		2086-3125

Environmental & Export Classifications

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.90.4000
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant

In Stock: 111

Can ship immediately.
