206404-1 _ Circular Connector Assemblies_Circular Connectors_Connectors, Interconnects

Part Number	206404-1
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	A113018-ND A113018 2266-206404-1 206404-1-ND -206404-1-SI

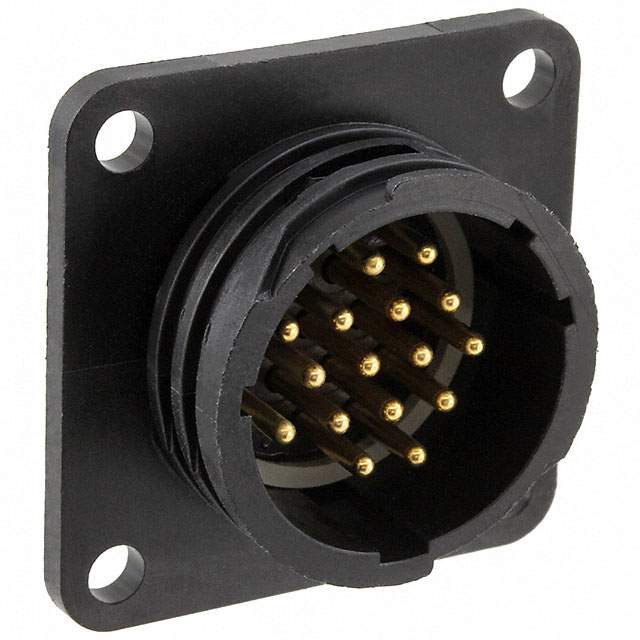

Description	CONN RCPT MALE 16POS SOLDER CUP
Detailed Description	16 Position Circular Connector Receptacle, Male Pins Solder Cup
Manufacturer Standard Lead Time	21 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Circular Connectors Circular Connector Assemblies
Manufacturer		TE Connectivity AMP Connectors
Series		CPC Series 1
Packaging		Tray
Part Status		Active
Connector Type		Receptacle, Male Pins
Voltage Rating		250VAC/DC
Mounting Type		Panel Mount
Number of Positions		16
Orientation		Keyed
Shell Size - Insert		17-16
Operating Temperature		-55°C ~ 105°C
Fastening Type		Threaded
Termination		Solder Cup
Material Flammability Rating		UL94 V-0
Mounting Feature		Flange
Contact Material		Brass
Contact Finish - Mating		Gold
Contact Finish Thickness - Mating		30.0µin (0.76µm)
Shell Material		Thermoplastic
Primary Material		Plastic

RESOURCE TYPE		LINK
Datasheets		206404-1
Datasheets		206404-1 Statement of Compliance
Datasheets		Mult Devs - logo chg 05/MAY/2021
Datasheets		Multiple Devices Material Change 06/Feb/2019
Datasheets		206404-1.pdf

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4020
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Affected
RoHS Status		RoHS Compliant
