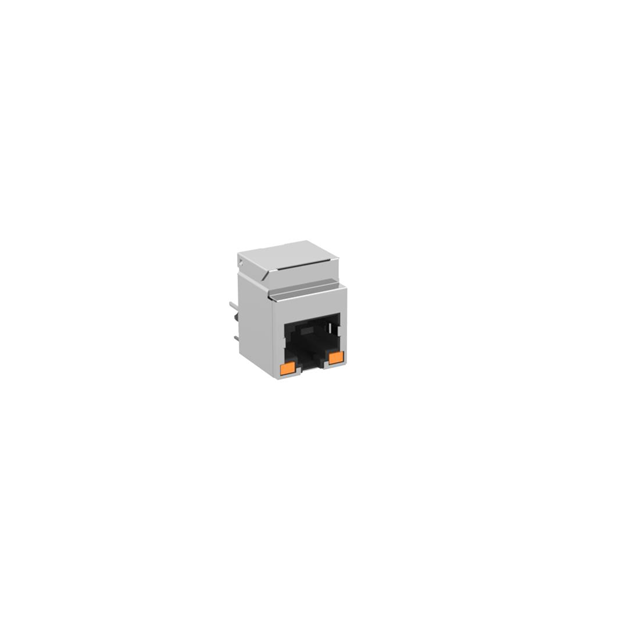

203346-E _ Modular Connector Jacks With Magnetics_Modular Connectors_Connectors, Interconnects

Part Number	203346-E
Manufacturer	TE Connectivity ERNI
Other Part Numbers	2684-203346-E-ND 2684-203346 2684-203346-E 2684-203346-ND 203346
Description	CONN JACK 1PORT 1000 BASE-T PCB
Detailed Description	1 Port RJ45Panel Mount, Through Hole 10/100/1000 Base-T, AutoMDIX
Manufacturer Standard Lead Time	30 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Modular Connectors Modular Connector Jacks With Magnetics
Manufacturer		TE Connectivity ERNI
Series
Packaging		Tray
Part Status		Active
Features		Board Guide
Connector Type		RJ45
Contact Finish		Gold
Mounting Type		Panel Mount, Through Hole
Shielding		Shielded
Orientation		Vertical
Operating Temperature		0°C ~ 70°C
Applications		10/100/1000 Base-T, AutoMDIX
Termination		Solder
LED Color		Orange, Green - Orange, Green
Number of Cores per Jack		8
Height Above Board		0.650" (16.51mm)
Tab Direction		User Selectable
Contact Finish Thickness		30.0µin (0.76µm)
Shield Material		Copper Alloy
Contact Material		Phosphor Bronze
Housing Material		Polyester, Glass Filled
Number of Ports		1
Number of Rows		1

RESOURCE TYPE		LINK
Datasheets		PN Change 26/JAN/2023

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		REACH Unaffected
RoHS Status		ROHS3 Compliant
