Part Number	2029397-1
Manufacturer	TE Connectivity AMP Connectors
Other Part Numbers	2029397-1-ND -2049-2029397-1

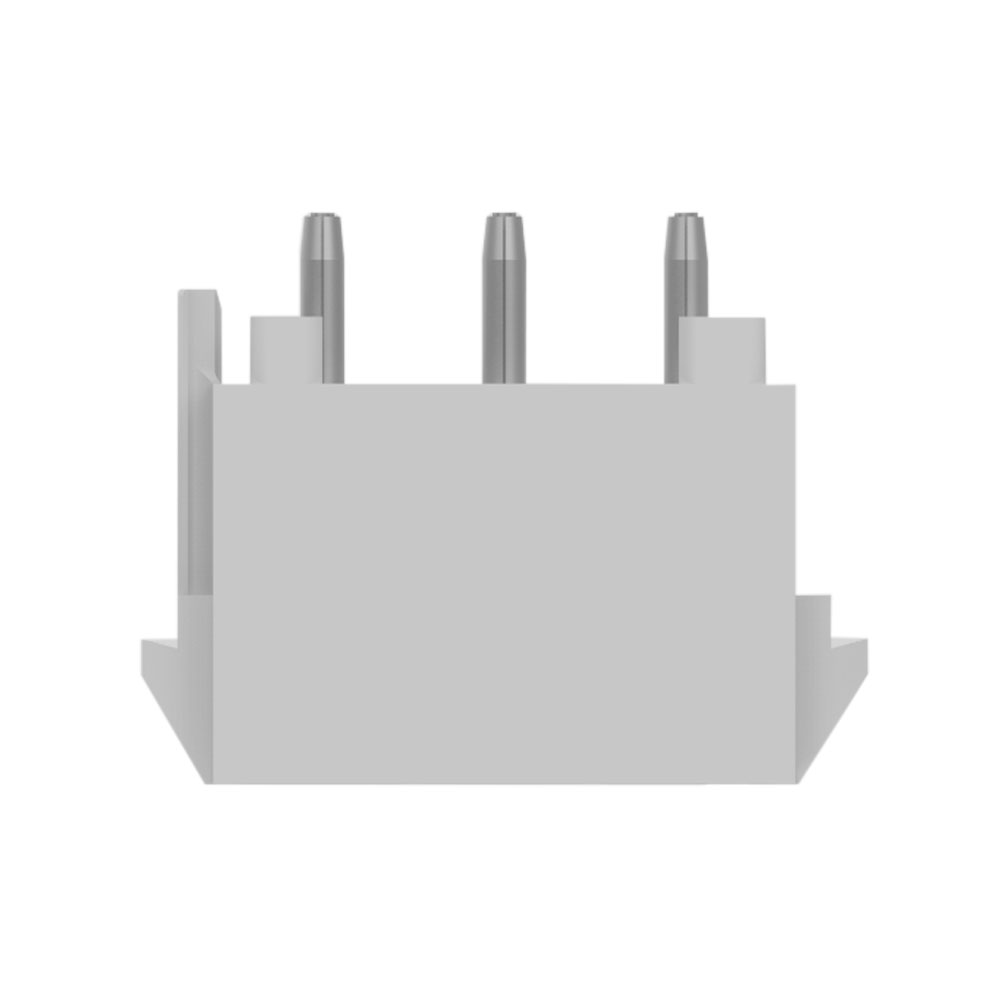

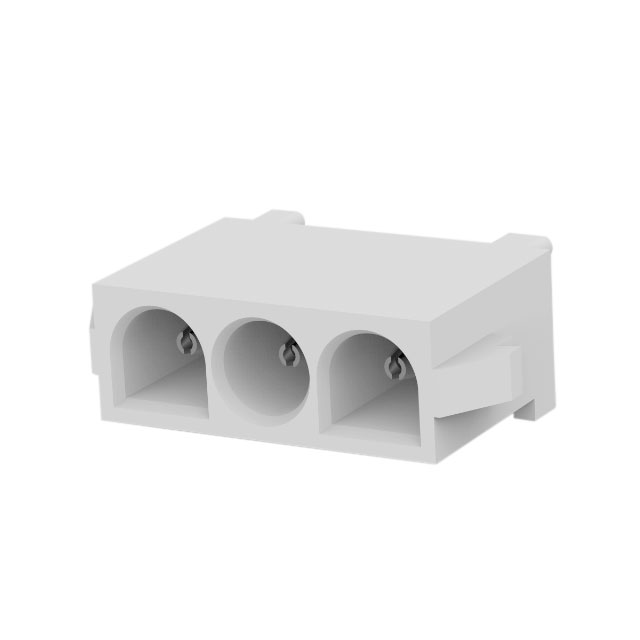

Description	CONN HEADER VERT 3POS 4.44MM
Detailed Description	Connector Header Through Hole 3 position 0.175" (4.44mm)
Manufacturer Standard Lead Time	16 weeks
Datasheet	Datasheet

Category		Connectors, Interconnects Rectangular Connectors Headers, Male Pins
Manufacturer		TE Connectivity AMP Connectors
Series		Universal MATE-N-LOK
Packaging		Bulk
Part Status		Active
Features		Board Guide
Connector Type		Header
Mounting Type		Through Hole
Number of Positions		3
Number of Rows		1
Style		Board to Cable/Wire
Applications		General Purpose
Contact Type		Male Pin
Fastening Type		Locking Ramp
Number of Positions Loaded		All
Termination		Solder
Material Flammability Rating		UL94 V-0
Contact Material		Phosphor Bronze
Insulation Color		White
Pitch - Mating		0.175" (4.44mm)
Contact Finish - Mating		Tin
Contact Finish - Post		Tin
Contact Shape		Circular
Contact Length - Post		0.230" (5.84mm)
Insulation Height		0.550" (13.97mm)
Shrouding		Shrouded - 4 Wall
Insulation Material		Polyamide (PA), Nylon

RESOURCE TYPE		LINK
Datasheets		2029397-1

ATTRIBUTE		DESCRIPTION
ECCN		EAR99
HTSUS		8536.69.4040
Moisture Sensitivity Level (MSL)		1 (Unlimited)
REACH Status		Vendor Undefined
RoHS Status		RoHS Compliant
